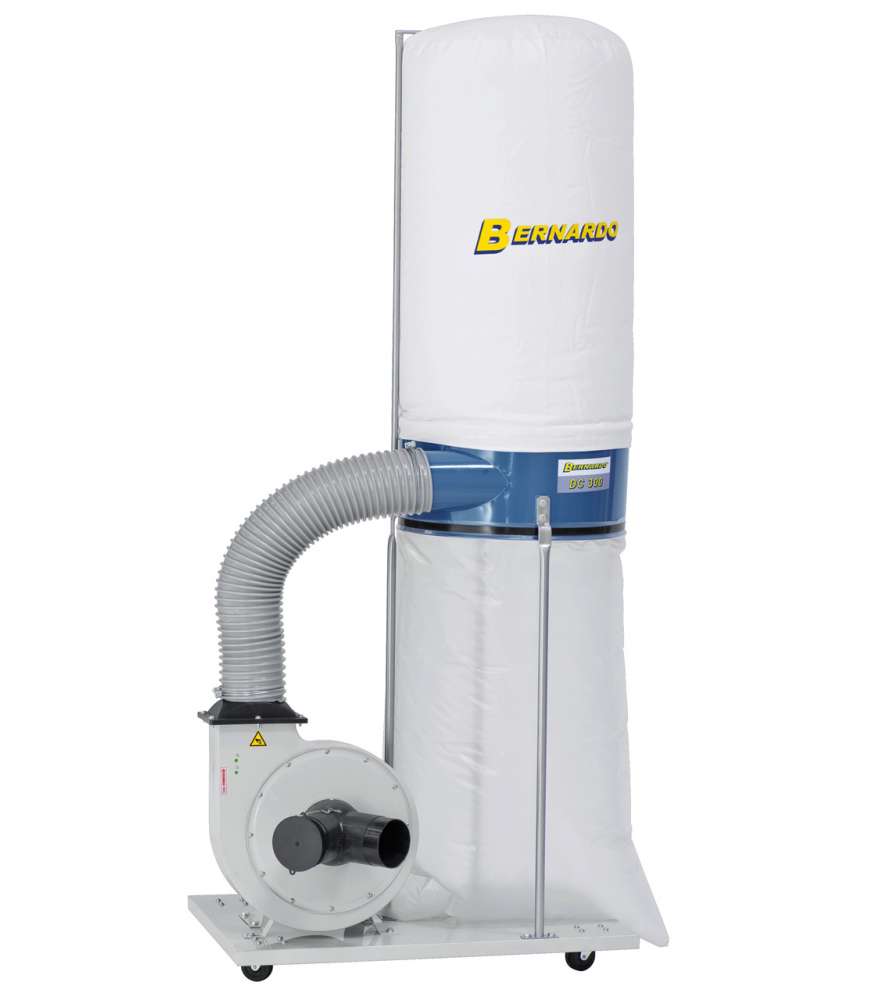

General description of the dust collector Bernardo DC300 :

• Ideal for vacuuming sawdust and chips
• Solid sheet steel frame, reduces static load compared to plastic enclosures
• With Y-connector for connecting two machines simultaneously

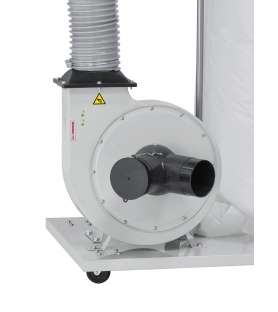

• Powerful suction thanks to aerodynamic steel rotor

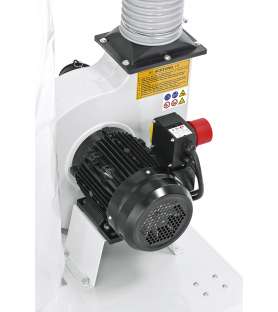

• Motor fitted as standard with thermal relay

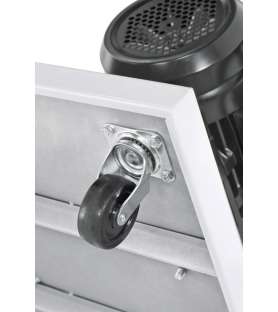

• Increased mobility with the standard caster frame

Technical characteristics of the dust collector Bernardo DC300 :

• Suction flow: 2520 m³ / h
• Filtration area: 1.45 m²
• Maximum vacuum: 1800 Pa
• Diam. suction nozzle: 1 x 130/2 x 100 mm
• Bag capacity: 200 l
• No-load speed: 2950 rpm
• Sound volume: 87.1 dB
• S1 continuous power 100%: 1.5 kW (2.0 hp)
• 40% S6 power: 2.1 kW (2.8 hp)
• Voltage: 230 V / 50 Hz
• Machine dimensions (W x D x H): 860 x 670 x 1980 mm
• Weight (approx.): 36 kg

The dust cleaner Bernardo DC300 is delivered with:

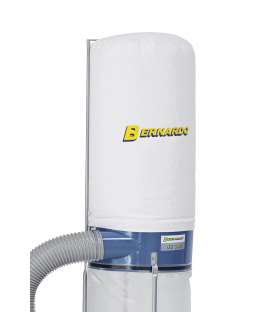

• Filter bag
• Chip bag
• Y adapter 1 x 130mm / 2 x 100mm
• Roller frame
