A chip vacuum cleaner is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the vacuum cleaner has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a vacuum cleaner with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

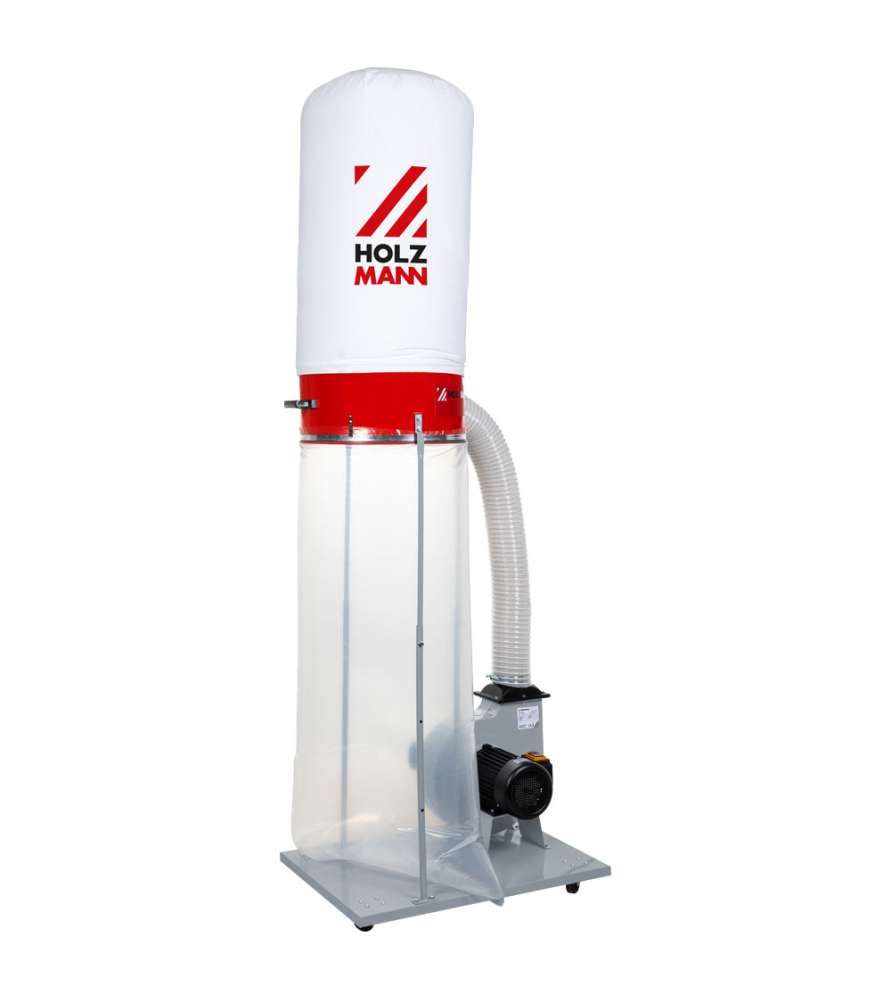

Take note of the features of this Holzmann ABS2480 dust collector!

This dust collector Holzmann ABS2480 offers twice as much storage capacity as its competitors like the Leman ASP152 and Jean l'ébéniste FM300 because its height is greater!
Ideal for medium-grade woodworking machines , it offers a very interesting air flow of 2480 m3 / hour and allows to connect 2 machines simultaneously! Certainly the best in its category.

General description of the dust collector Holzmann ABS2480:

• Handle on the collector for easy movement.
• 1500W asynchronous motor, powerful, durable and quiet.
• Riveted steel propeller for greater wear resistance, and profiled fins to optimize airflow and minimize noise.
• Fan, collector, and welded posts.
• Felt filter bag and plastic recovery bag. The clamping on the collector is done by a strap passed in the hem of the bag.
• 2 fan connections Ø 100 mm, 1 shutter plug supplied.
• Very resistant connection pipe (double layer of PVC with polyamide coil), but flexible and very handy.

The dust collector Holzmann ABS2480 comes with:

1 felt filter bag and 1 plastic waste bag, 1 blanking plug, keys and instructions for use.

The technical characteristics of the dust collector Holzmann ABS240 are :

• Steel turbine
• Filtration: 1.45 m2
• Air suction: 2480 m3 / h
• Fill quantity L: 300
• Number of suction nozzles and ø mm: 2 x ø 100 - 1 x ø 130 mm
• Motor: 400V
• power s1: 1500W
• Speed: 2950 rpm
• Size: 860 x 670 x 2330 mm
• weight: 40 kg

Remember to buy 100 mm diameter chip suction pipe to the desired length to connect your woodworking machines to this dust collector!
