A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the vacuum cleaner is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

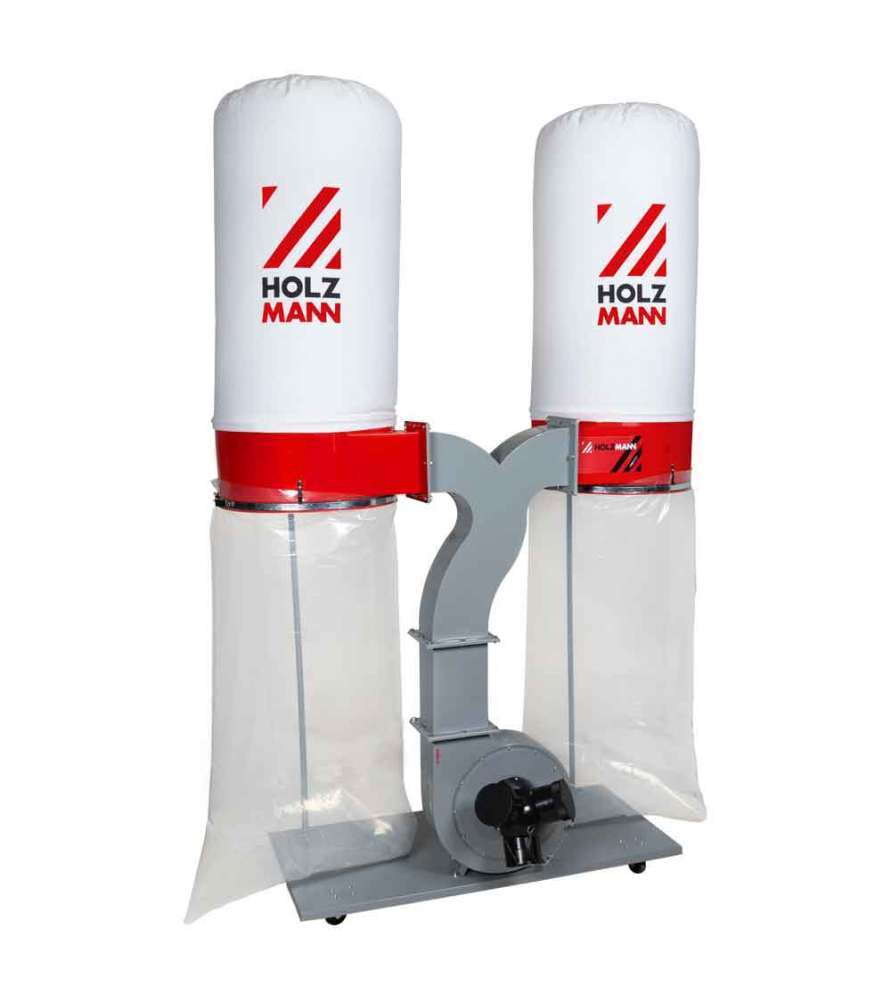

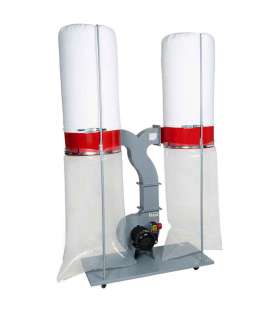

Take a good look at the features of this dust collector Holzmann ABS3880!

The dust collector Holzmann ABS3880 has a capacity of 2 times 200 liters of chip storage, so more than its competitors, because its height is greater! It has a motor of 2200W, a suction power of 3880 m³ / h!

General description of this dust collector :

• Welded base mounted on 4 independent multidirectional wheels.
• Asynchronous motor of 2200 W, powerful, enduring and silent.

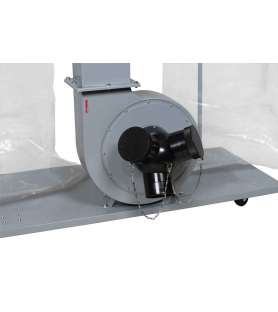

• Riveted steel propeller for greater wear resistance, and profiled fins to optimize airflow and minimize noise.
• Fan, collector, and welded columns.
• Felt filter bags and plastic bags. The clamping on the collector is done by a strap passed in the hem of the bag.
• 3 fan connections diameter 100 mm, 2 plugs provided.

Technical specifications of dust collector Holzmann ABS3880:

• Steel turbine
• Air suction m3 / hour: 3880
• Fill quantity L: 2 x 200 liters
• Number of suction nozzles and ø mm: 3 x ø 100 - 1 x ø 150 mm
• Decibels: 89.4
• Bag diameter: 500 mm

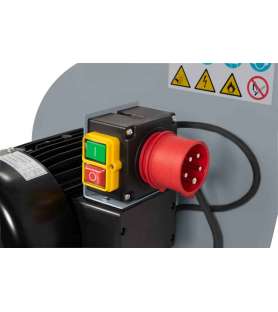

• Motor: 400V
• Power: 2200W (3.0 HP)
• Speed: 2950 rpm
• Size: 1150 x 730 x 2150 mm
• Weight kg: 53

The dust collector Holzmann ABS3880 comes with: 2 filter bags made of felt and 2 plastic bags, 2 blanking plugs, keys and instructions for use.

Consider buying the optional 100mm diameter suction hose to the desired length!
