A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of chip vacuum cleaner?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a vacuum cleaner with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the vacuum cleaner is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

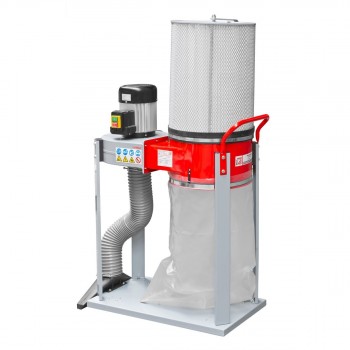

Take note of the features of this Holzmann ABS1500FF chip vacuum cleaner!

Its main features are:

• Welded base mounted on 4 independent multidirectional wheels.
• Large handle for easy movement.
• Floor suction nozzle attached to the base with 0.75m hose included.
• Riveted steel propeller for greater wear resistance and profiled fins to optimize airflow and minimize noise.
• Fan, collector, and welded posts.
• Filter cartridge FP1 capturing the finest dust up to 3 microns
• Connection to the fan Ø 100 mm.

Technical specifications of the dust collector Holzmann ABS1500FF:

• Capacity: 1500 m³ / h
• Filtering surface: 2.25 m²
• Low pressure max. : 1020 Pa
• Inlet diameter: 100 mm
• Volume of the bag: 60 liters
• Slow motion: 2.950 rpm
• Sound pressure: 86.5 dB
• Output motor power S1 100%: 0.75 kW (1.0 HP)
• S6 engine power input 40%: 1.0 kW (1.35 HP)
• Voltage: 400V
• Dimension of the machine (W x D x H): 850 x 380 x 1420 mm
• Weight approx. : 31 kg

This dust collector Holzmann ABS1500FF comes with:

• Filter cartridge FP1
• Ground suction device
• Moving wheels
• Receiver bag

Consider buying 100 mm diameter chip suction pipe to the desired length to connect your woodworking machine to this dust collector!
