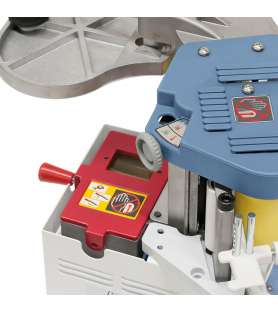

General description of the Bernardo PEB300S portable edgebander :

• Adjustable guide system for use with edge thicknesses from 0.3 to 3 mm or edge heights from 10 to 65 mm
• The 2 rubber-coated handles and the height-adjustable guide plate ensure fatigue-free working
• Ideal for gluing rectilinear and scalloped pieces, minimum internal radius 25 mm
• Very economical, no need to glue the edges in advance
• Ideal for ABS, PVC, melamine and veneered edges
• The glue is directly applied to the edges
• On/off switch directly on the handle for easy use
• Suitable for mobile or stationary use

The Bernardo PEB300S portable edgebander is delivered with :

• KG 60 Duo edge cutting machine
• Glue granules 0.8 kg
• Vacuum clamping kit VH 03
• Electric edge milling cutter KF 80
• 3x transport boxes
• Cart

Technical characteristics of the Bernardo PEB300S portable edgebander :

• Edge thickness (PVC): 0.3 – 3.0 mm
• Minimum / maximum edge height: 10 – 65 mm
• Heating time: 4 min (120°)
• Operating temperature: 120 – 200°
• Glue tank: 400 ml
• Feed speed: 4 m/min
• Motor power: 855 W
• Voltage: 230 V
• Machine dimensions (L x D x H): 340 x 300 x 350 mm
• Weight (approx.): 8.0 kg
