General description of the Bernardo PEB500V portable edgebander :

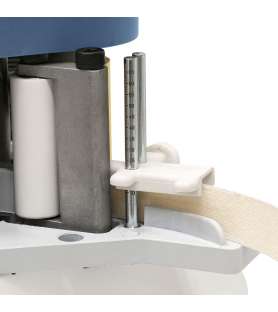

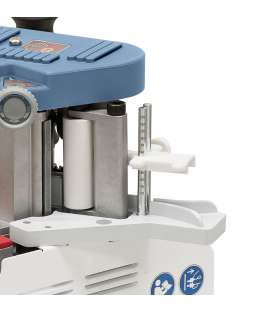

• Adjustable guide system for use with edge thicknesses from 0.3 to 3 mm or edge heights from 10 to 65 mm
• The 2 rubber-coated handles and the height-adjustable guide plate ensure fatigue-free working
• Comfortable edge feeding thanks to infinitely adjustable feed speed
• Ideal for gluing rectilinear and scalloped pieces, minimum internal radius 25 mm
• Temperature variator and rapid heating for a quickly operational and practical machine
• Very economical, no need to glue the edges in advance
• Ideal for ABS, PVC, melamine and veneered edges

The Bernardo PEB500V portable edgebander is delivered with :

• Carrying case
• Glue granules 0.8 kg
• Continuous feed regulation
• Digital temperature adjustment

Technical characteristics of the Bernardo PEB500V portable edgebander :

• Edge thickness (PVC): 0.3 – 3.0 mm
• Minimum / maximum edge height: 10 – 65 mm
• Heating time: 4 min (120°)
• Operating temperature: Level 1: 120 – 200°
• Level 2: 80 – 155°
• Glue tank: 400 ml
• Feed speed: 2 - 6 m/min
• Motor power: 855 W
• Voltage: 230 V
• Machine dimensions (L x D x H): 340 x 300 x 350 mm
• Weight (approx.): 8.1 kg
