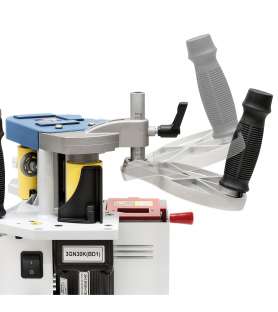

General description of the Bernardo PEB500V-S Edge banding machine :

• Adjustable guide system for use of edge thicknesses of 0,3 - 3 mm or edge heights of 10 - 65 mm
• 2 rubberized handles and a height-adjustable guide plate ensure effortless working
• Comfortable apply of the edge material through stepless adjustable feed speed
• Ideal for application of adhesives onto straight or curved workpieces, minimal inside radius 25 mm
• Stepless temperature control and fast preheating allow for immediate and ease of use
• High efficiency, no edge material with advanced glue necessary
• Ideal for processing of ABS-, PVC-, melamine and veneer edges

The Bernardo PEB500V-S Edge banding machine comes with :

• Glue granulate 0,8 kg
• Stepless feed adjustment
• Digital temperature adjustment
• Dual end cutter KG 60 DUO
• Vacuum kit VH 03
• Edgeband trimmer KF 80
• 3x transport box
• Carriage

Technical characteristics of the Bernardo PEB500V-S Edge banding machine :

• Edge thickness (PVC) : 0,3 – 3,0 mm
• Edge height min./max. : 10 – 65 mm
• Heating-up time : 4 min (120°)
• Working temperatur : Mode 1: 120 – 200° / Mode 2: 80 – 155°
• Glue tank : 400 ml
• Feed speed : 2 - 6 m/min
• Motor power : 855 W
• Voltage : 230 V
• Machine dimension (W x D x H) : 340 x 300 x 350 mm
• Weight approx. : 8,1 kg
