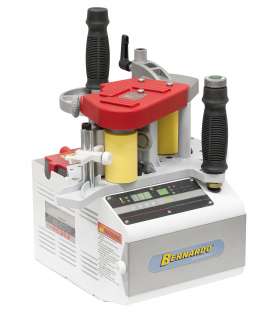

General description of the Bernardo DR500 portable edgebander :

• Temperature variator and rapid heating for a quickly operational and practical machine
• Ideal for gluing straight or curved pieces (concave or convex)
• Fine adjustment of the amount of glue applied
• Ideal for ABS, PVC, melamine and veneered edges
• Continuous adjustment of the feed speed directly on the handle
• Powerful drive motor ensures smooth operation regardless of feed speed
• Optimal for mobile use, rechargeable battery for cordless operation

The Bernardo DR500 portable edgebander is delivered with :

• Carrying case
• Glue granules 0.8 kg
• Continuous feed regulation

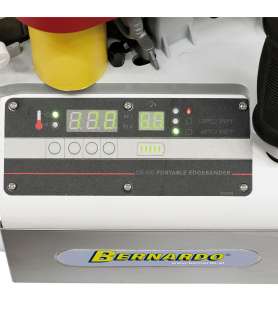

• Digital temperature adjustment

Technical characteristics of the Bernardo DR500 portable edgebander :

• Edge thickness (PVC): 0.3 – 3.0 mm
• Minimum / maximum edge height: 10 – 65 mm
• Heating time: 4 min (120°)
• Operating temperature: Level 1: 120 – 200°
• Level 2: 80 – 155°
• Glue tank: 400 ml
• Feed speed: 2 - 6 m/min
• Motor power: 855 W
• Voltage: 230 V
• Machine dimensions (L x D x H): 340 x 300 x 350 mm
• Weight (approx.): 8.5 kg
