Radial drill press Holzmann SB3116RHN
  • Radial drill press Holzmann SB3116RHN
  • Radial drill press Holzmann SB3116RHN

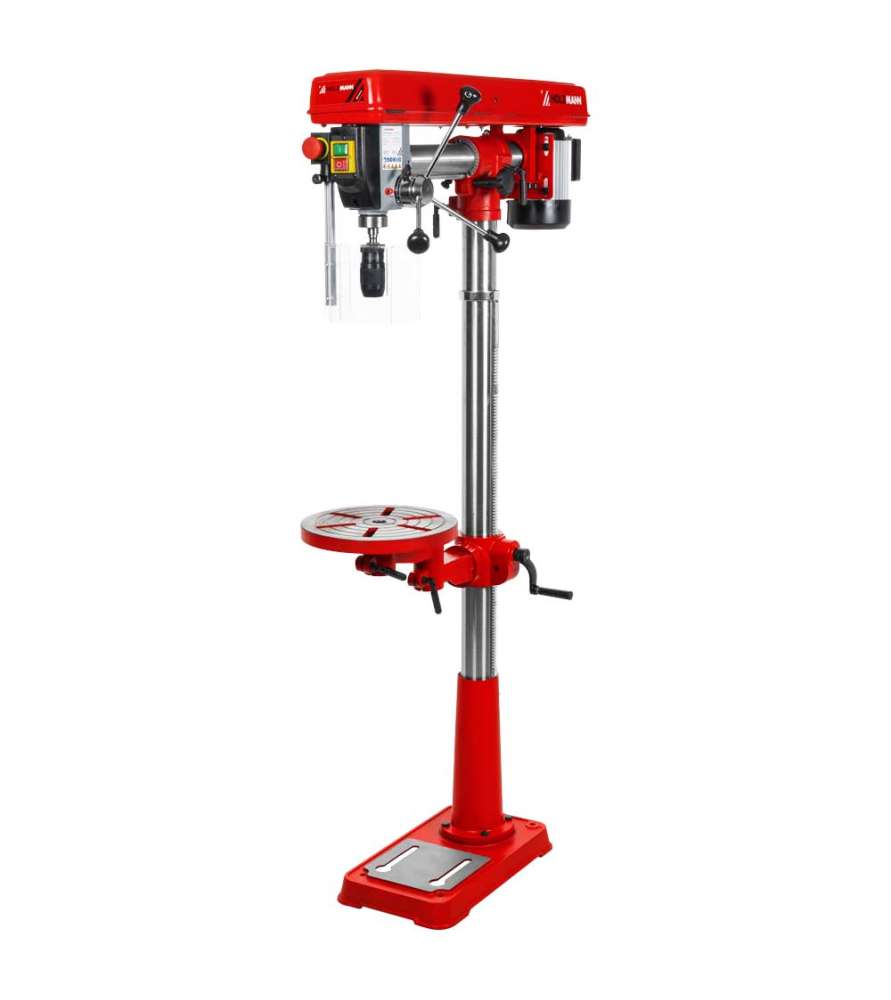

Radial floor column drill Holzmann SB3116RHN - 400V

545.00 € Tax included

Including €2.50 for ecotax

Reference: HSB3116RHN-400V

Radial floor column drill Holzmann SB3116RHN for angular and challenging holes.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description :

  • Solid basis for a good balance of the machine, with T.
  • Engine aluminum according to IP54 standards.
  • Column solid steel, polished, and resistant to twisting.
  • The work table can be tilted 45 ° to + 45 ° and turn to 360 ° around the column.
  • Protective screen tilt and adjustable.
  • Stop of adjustable drilling depth, with precise control of the depth scale.

Technical characteristics :

  • Drilling capacity: 16mm
  • Spindle speeds: 5 500-2500 RPM
  • Voltage: 400V
  • Gooseneck: 430mm
  • Spindle Morse taper: MT2
  • Chuck stroke: 80 mm
  • Distance spindle - table (max.): 825 mm
  • Distance spindle - base (max.): 1315 mm
  • Height of the machine: 1620mm
  • Table (L x w) dimensions: Ø300mm
  • The table tilt: +/-45º
  • Dimensions Base: 456x280mm
  • Motor power S1 (100%): 600W
  • Net weight: 58kg
  • Machine dimensions: 320x360x910mm
  • Height of the machine: 1400x490x250mm
