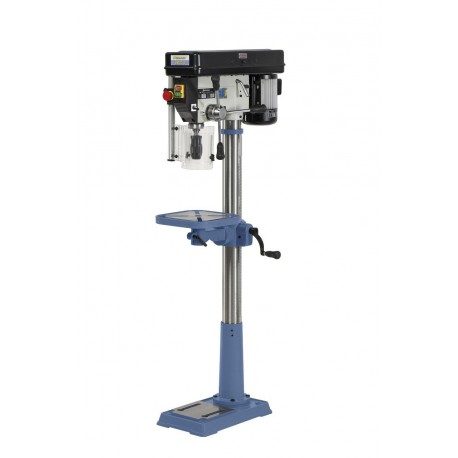

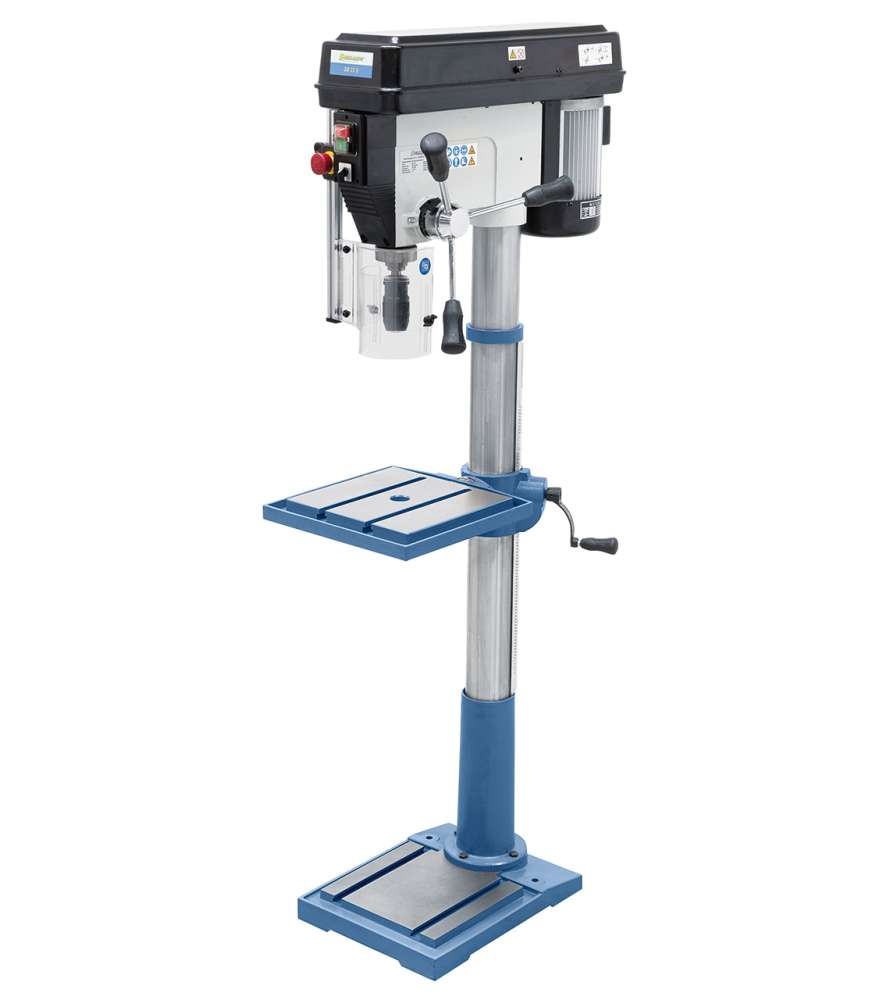

Bernardo SB32S column drill equipped with a precision drilling table!

This table is tiltable (+/- 45°) and adjustable by rack and crank.

Advantages of the Bernardo SB32S drill press:

• Quality bearings for excellent spindle concentricity

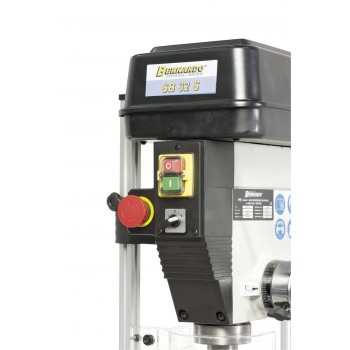

• Left/right rotation switch
• Powerful and robust IP 54 aluminum motor
• Precision quick-release chuck as standard
• Machined base for clamping large parts
• Large T-slot drilling table and cutting fluid discharge channel

Delivery with:

Quick-release chuck 1 - 16 mm / B 18, one CM 4 / B 18 chuck mounting shaft, left/right rotation reversing switch, height-adjustable guard, separate emergency stop button, T-slot nuts, and service tools

Technical characteristics of the Bernardo SB32S drill press:

• Maximum drilling diameter: 32 mm
• Drill chuck: 1 - 16 mm / B 18
• Morse taper: CM 4
• Spindle Speed: (12) 150 - 2450 rpm
• Gooseneck: 215 mm
• Tiltable drilling table: -45° to +45°
• Max spindle/table distance: 760 mm
• Spindle/base distance: 1125 mm
• Spindle stroke: 120 mm
• Column diameter: 92 mm
• Dimensions table / T-slots: 300 x 290 mm / 14 mm
• Pedestal work surface: 295 x 270 mm
• Continuous power S1 100%: 1.1 kW / 400 V
• Power S6 40%: 1.6 kW / 400 V
• Machine dimensions (W x D x H): 400 x 720 x 1700 mm
• Weight (approx.): 95 kg
