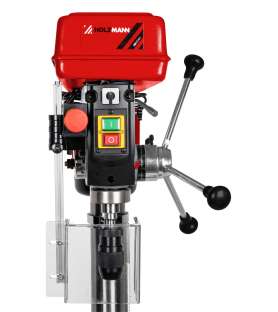

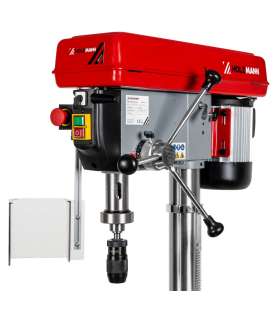

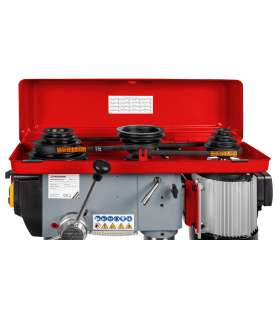

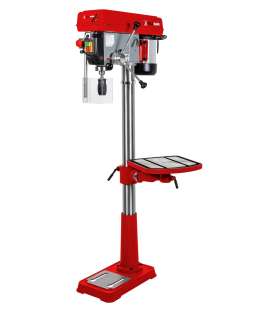

The Holzmann SB2516H Floor Drill is a machine with a solid work table!

It can be tilted from -45 ° to + 45 ° and also rotates 360 ° around the column!

Advantages of the Holzmann SB2516H Floor Drill:

• Solid base for a good machine balance with T-slots
• Aluminum motor according to IP54 standards
• Steel column, solid, polished and torsion-resistant
• Ergonomic capstan with depth scale
• Adjustable drilling depth stop, with scale for precise depth control
• Tilt and adjustable protection screen
• Rotate left / right

  Specifications of Holzmann SB2516H Floor Drill:

  • Spindle speeds version 400V: (16) 100-2000 rpm
  • Voltage: 400V
  • Gooseneck: 215mm
  • Morse spindle cone: MT3
  • Chuck stroke: 80mm
  • Distance spindle - table (max.): 725mm
  • Distance pin - base (max.): 1220mm
  • Height of the machine: 1635mm
  • Dimensions of the table (L x W): 356x356mm
  • Tilting of the table: +/- 45º
  • Base dimensions: 485x290mm
  • Engine power S1 (100%) / S6: 1100W
  • Net weight: 81kg
  • Dimensions of the machine: 86kg
  • Height of the machine: 1410x540x250mm

    Delivered with:

    Self-tightening chuck 1-6 mm, B16
