Mortiser Bernardo LBM 150 - 230V

1,165.00 € Tax included

Including €2.50 for ecotax

Reference: BLBM150P - 230V

The mortiser Bernardo LBM150 offers excellent capacity, a reversal of the rotation, a machine ideal for the amateur and the particular !

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The mortiser Bernardo LBM150 offers excellent capacity, a reversal of the rotation !

  • Complete with Westcott drill chuck 0 - 16 mm with cover
  • Eccentric holder for secure fastening of workpiece comes standard
  • Ergonomically positioned lever allows for one handed operation of work table
  • Motor protective switch in accordance with IP 54 standards with undervoltage release
  • Precise roller guiding ensure accurate movement of work table
  • Powerful motor guarantees optimal performance
  • Multiple holes are easy to achieve with the rotor group (part of standard equipment)

Standard accessories of The mortiser Bernardo LBM150 :

  • 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm
  • Westcott drill chuck 0 - 16 mm
  • 1 pc. eccentric holder
  • Mitre fence with guide
  • Left and right turning

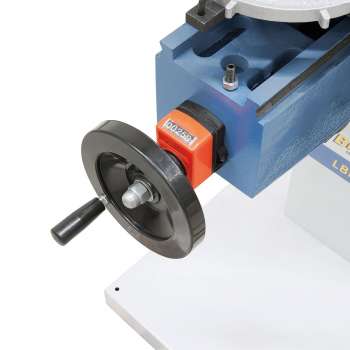

  • Digital readout for table height adjustment
  • Machine base with tool shelf

Technical specifications of The mortiser Bernardo LBM150 :

Table size

500 x 200 mm

Table height

760 - 900 mm

Max. drill depth 90°

150 mm

Drill width

300 mm

Height adjustment

140 mm

Speed

2850 rpm

Westcott drill chuck

0 - 16 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

2,2 kW (3,0 HP)

Motor power input S6 40%

3,0 kW (4,0 HP)

Voltage

230 V

Machine dimension (W x D x H)

770 x 920 x 1245 mm

Weight approx.

102 kg
