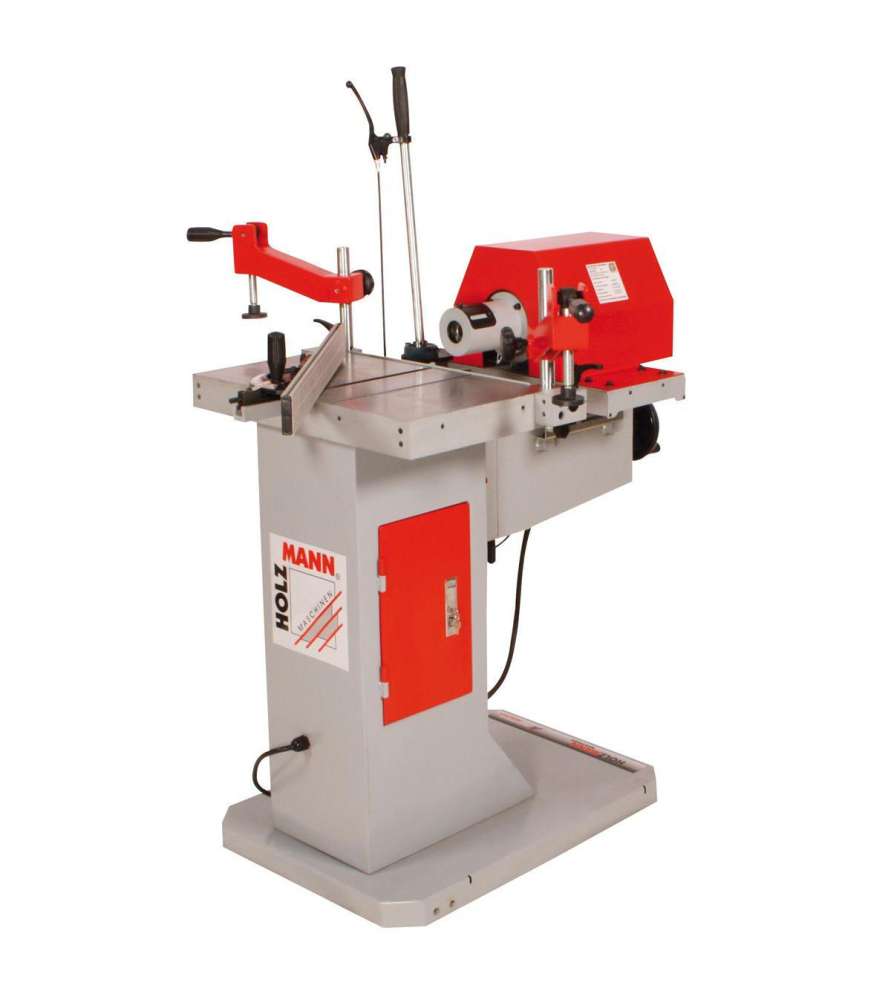

The mortiser to wicks Holzmann LBM290K is a machine with a powerful 3000 W motor!

This asynchronous, long-lasting, quiet motor gives the machine remarkable power!

The advantages of the mortiser to wicks Holzmann LBM290K:

• Base and column in welded steel.
• Casting table and set made of cast iron. Elevation of the drilling head on dovetail.
• Double turning (lateral and longitudinal) on dovetail, displacements facilitated by only one lever of big dimension.
• Lateral and longitudinal turning stops.
• 2 Vertical fast-pressing presses.
• Rotate Left and Right.
• Disengageable device with 4 drilling positions.
• Tab Guide.
• Metal storage cabinet.

Delivered with: 1 drill bit diameter 10 mm, 4 adapters for drill bits 19, 20, 28 and 30 mm, eccentric clamp and tools.

Technical characteristics of the mortiser to wicks LBM290K:

• Model: LBM 290K
• Motor power 230V : 3000 W
• Overall dimensions (L x W x H): 855 x 600 x 1160 mm
• Speed ​​of rotation: 2800 RPM
• WESCOTT chuck clamping capacity: 20 mm
• Rotate: Left / Right
• Table dimensions (LxW): 570 x 300 mm
• Dimensions of the machine with optional extensions: 2600x1530x1500mm
• Vertical stroke of the drilling head: 140 mm
• Lateral trucking: 290 mm
• Depth trucking: 155 mm
• 4 drilling positions: 16-20-22 and 25 mm
• Suction nozzle: Diam. 100 mm
• Total weight: 140 kg
• Packing (mm): 855 x 600 x 1160
• Total gross weight: 160 Kg
