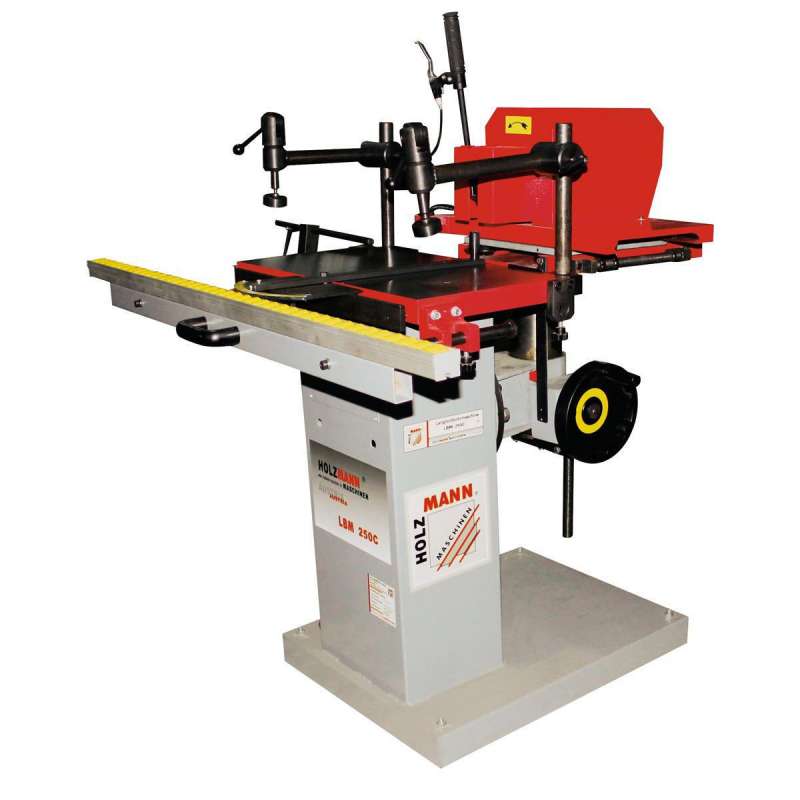

Drill bit mortiser with rotary head Holzmann LBM250C
  • Drill bit mortiser with rotary head Holzmann LBM250C

Drill bit mortiser with rotary head Holzmann LBM250C

2,295.00 € Tax included

Including €2.50 for ecotax

Reference: HLBM250C

Drill mortiser with rotary Holzmann LBM250C robust head equipped with a powerful motor.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description:

  • Mortiser made in Europe.
  • Sliding table in cast iron.
  • Rotary mortiser head left and right for specific jobs.
  • Drilling device indexed in 4 positions (16-22-25-32mm).
  • Easy adjustment of depth and width stops.
  • Height adjustment by large steering wheel.
  • Simple miter cutting guide.
  • Table extension adjustable according to the width of your workpiece.
  • The perfect ergonomics of the control lever ensures fast, efficient and very precise work.

Technical characteristics :

  • Motor power S1 (100%): 2200 W.
  • Voltage - Frequency: 400 V - 50 Hz.
  • Wescott chuck capacity: 0 to 20 mm.
  • Max vertical stroke : 155 mm.
  • Max. Lateral stroke : 250 mm.
  • Max depth : 215 mm.
  • Table dimensions: 600 x 320 mm.
  • Net weight: 205 kg.

Delivered with:

the miter guide, the table extension, 2 eccentric pressers, the WESCOTT type mandrel.
