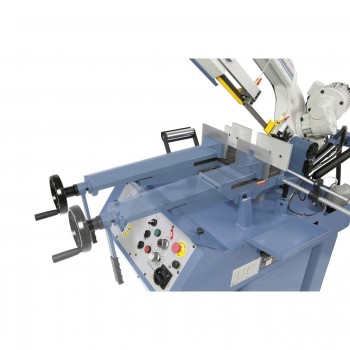

Description of the metal band saw with variator Bernardo MBS 300 DG-V PRO:

• Professional band saw for universal use in workshop, locksmith, etc.
• For cutting hollow profiles and solid materials, stainless steel, tool steel, etc.
• Large bow made of dimensionally stable ductile iron
• 2 cutting speeds for optimal cutting of the most diverse materials
• Adjustable hydraulic cylinder to regulate the cutting pressure of the bow
• Tilt bow for double-sided cuts (-45 °) and right (+ 60 °)
• Quiet, vibration-free operation thanks to quality materials

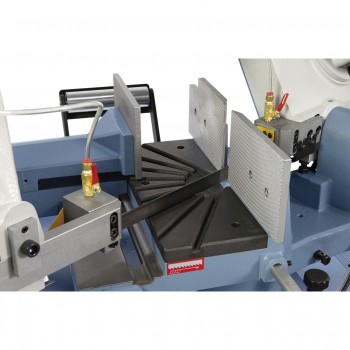

• Robust clamp made of gray cast iron with quick clamping
• Blade guide with quick adjustment according to the width of the parts, guarantees an optimal result

Technical characteristics of the Bernardo MBS300DG-V PRO metal band saw with variator:

• Cutting capacity 90 ° round / square: 255 mm / 210 x 210 mm
• Cutting capacity 90 ° flat: 310 x 210 mm
• Cutting capacity 45 ° D round / square: 220 mm / 210 x 210 mm
• Cutting capacity 45 ° D flat: 220 x 200 mm
• Cutting capacity 45 ° G round / square: 230 mm / 200 x 200 mm
• Cutting capacity 45 ° G flat: 230 x 200 mm
• Cutting capacity 60 ° D round / square: 135 mm / 135 x 135 mm
• Cutting capacity 60 ° D flat: 135 x 135 mm
• Working height: 930 mm
• Size of the band saw blade: 2750 x 27 x 0.9 mm
• Speed ​​of cutting with variator: 20-80 m / min
• Engine pump watering S1 / 100%: 100W
• S1 / 100% motor: 1.5 kW
• Voltage: 400V
• Dimensions of the machine (W x D x H): 2000 x 1250 x 1900 mm
• Weight approx. 350 kg

The Bernardo Metal Band Saw with Inverter MBS300DG-V PRO comes with:

• Ribbon
• stopper
• plinth

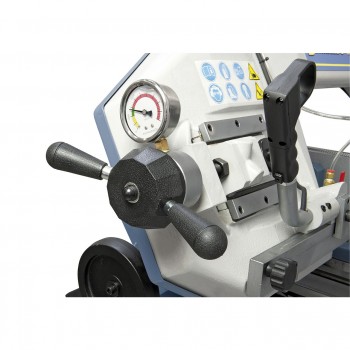

• Tape tension manometer
• Blade guide with carbide inserts
• Quick Lock Vice
• Watering device
• Hydraulic cylinder for descent of the bow
• Motor circuit breaker
• Automatic cut at the end of the race
