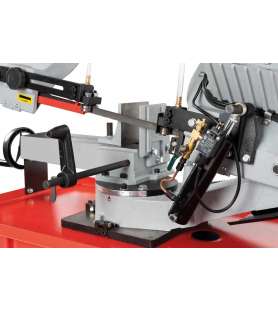

General description of the Holzmann BS712TURN-G metal band saw:

• Blade dimensions: 2360x20x0.9mm
• Space saving, thanks to its swivel arm.
• Band saw driven by gears, to adjust the speeds of the saw blade.
• 3 cutting speeds: 39/55/67 m / min, allowing a speed perfectly suited to machining. Gearbox capacity: 750ml SAE 80W-90
• Equipped with wheels to allow easy movement inside the workshop and save space. Automatic stop at the end of the cut
• Machine in gray cast iron, saw guided by ball bearings, with chip collection and lubrication pump as standard
• Lowering speed adjustable by hydraulic cylinder.
• Quick-clamping vice with jaws adjustable from 0 ° to 45 ° for angular cuts with eccentric clamping system.
• Adjustable cutting stop for series parts
• Tilt: -45 ° + 45º

Technical characteristics of the Holzmann BS712TURN-G metal band saw:

• S1 motor power: 1100 W
• Voltage: 400V / 3 / 50Hz
• Machine dimensions: 1250 x 985 x 910 mm
• Cutting capacity solid tube Ø 90 °: 205 mm
• Cutting capacity solid tube Ø 45 °: 140 mm
• Cutting capacity solid tube Ø -45 °: 150 mm
• Cutting capacity LxA at 90 ° mm: 215 x 205 mm
• Cutting capacity LxA at 45 °: 140 x 90 mm
• Cutting capacity at -45 °: 100 x 200 mm
• Blade dimensions :: 2360 x 20 x 0.9 mm
• Speeds :: 39/55/67 m / min
• Sound power level: 82.8 dB
• Sound pressure level: 72.8 dB
• Gross weight: 201 kg
• Net weight: 181 kg

The Holzmann BS712TURN-G metal band saw is delivered with:

• Saw blade (2630 x 20 x 0.9 mm)
• moving device
• workpiece end stop
