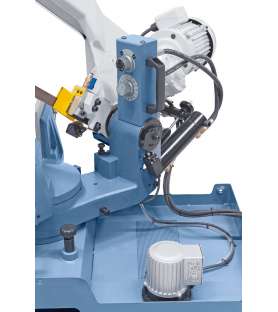

General description of the Bernardo MBS290DG-V PRO double miter metal band saw:

• Heavily dimensioned, torsion-free saw arm made of nodular cast iron
• Guiding of the saw band via a combined guide system with roller jaws with carbide inserts
• Robust construction, therefore smooth and vibration-free operation
• Continuous descent by hydraulic cylinder
• Gear with hardened and ground worm and bronze worm wheel
• Heavy-duty cast iron vise with workpiece stopper, ideal for series cuts
• Comes with stand and cooling system as standard
• Automatic limit switch according to the average of the material
• Adjustable saw frame for double miter cut left (-45 °) and right (+ 60 °)
• Pressure gauge included to check optimum saw band tension

Technical characteristics of the Bernardo MBS290DG-V PRO double miter metal band saw:

• Cutting capacity round / square 90 °: 235 mm / 235 x 235 mm
• 90 ° flat cutting capacity: 270x200mm
• Cutting capacity round / square 45 ° Right: 200 mm / 185 x 185 mm
• Cutting capacity flat 45 ° Right: 220x180mm
• Cutting capacity round / square 45 ° Left: 175m / 140x140mm
• Cutting capacity flat 45 ° Left: 200x140mm
• Cutting capacity round / square 60 ° Right: 120mm / 120x120mm
• Cutting capacity flat 60 ° Right: 120 x 115 mm
• Working height: 990 mm
• Saw band dimension: 2645 x 27 x 0.9 mm
• Cutting speeds: 20 - 90 m / min
• Coolant pump: 100W
• Motor output power S1 100%: 1.5 kW
• Voltage: 400V
• Machine dimensions (W x D x H): 1600 x 1100 x 1500 mm
• Weight approx. : 260 kilograms

The Bernardo MBS290DG-V PRO double miter metal band saw is delivered with:

• Blade
• Stop the part
• Frame
• Belt tension gauge
• Saw band guide with hard metal inserts
• Quick release vise
• Cooling device
• Hydraulic lowering cylinder
• Motor protection switch
• Automatic limit switch
