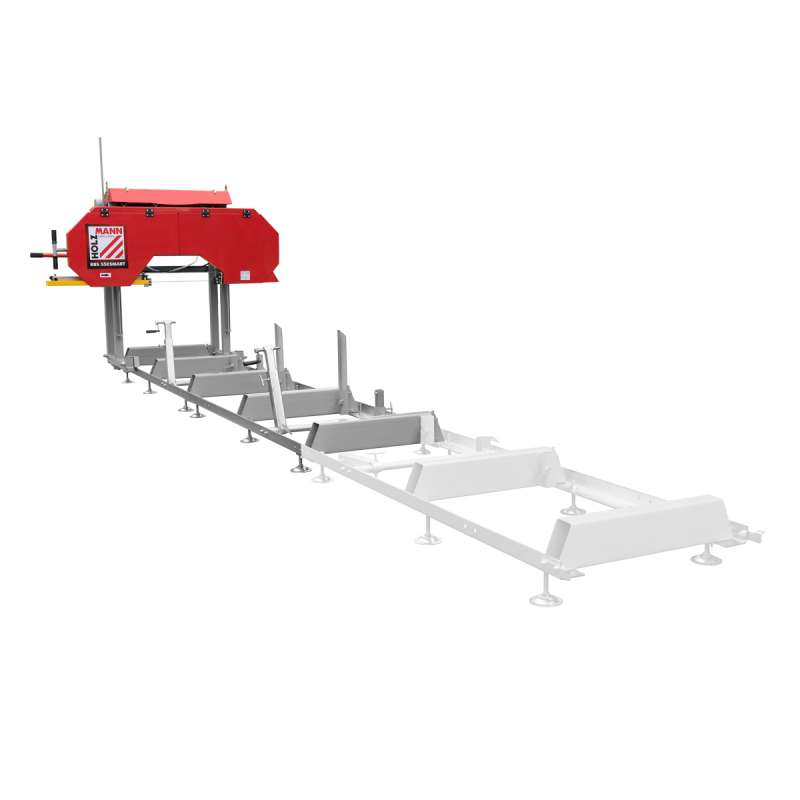

Log saw Holzmann BBS550SMART
  • Log saw Holzmann BBS550SMART
  • Log saw Holzmann BBS550SMART
  • Log saw Holzmann BBS550SMART
  • Log saw Holzmann BBS550SMART
  • Log saw Holzmann BBS550SMART

Log saw Holzmann BBS550SMART

3,295.00 € Tax included

Including €2.50 for ecotax

Reference: HBBS550SMART

The Holzmann BBS550SMART log saw is designed exclusively for cutting soft, hard, dry, rough wood with a diameter of up to 550 mm.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Holzmann BBS550SMART log saw:

  • cutting length depends on number of extendable sections
  • all types of wood can be cut with the same blade.
  • solid, torsion-free construction
  • low level of maintenance required
  • easy handling
  • solid cast iron drive wheel
  • precise guide
  • eccentric clamping system
  • manual height adjustment (thickness)
  • manual cutting feed

Technical characteristics of the Holzmann BBS550SMART log saw:

  • Motor power s1: 5500 W
  • Voltage: 400V / 3 / 50Hz
  • Total dimensions: 4350 x 1600 x 1800 mm
  • Min. Length workpiece height: 1050 mm
  • Saw blade: 3658 x 25 x 0.9 mm
  • Blade speed: 1080 m / min
  • Blade flywheel diameter: 475 mm
  • Max.diameter log height: 550 mm
  • max. opening between blade guides: 530 mm
  • groove thickness: 1.5-2.2 mm
  • track section: 2.0 m
  • sound power level: 98 dB (A)
  • sound pressure level: 89 dB (A)
  • gross weight: 387 kg
  • net weight: 335 kg
  • This model is the economy version made in Asia of the BBS550 made in Europe.
