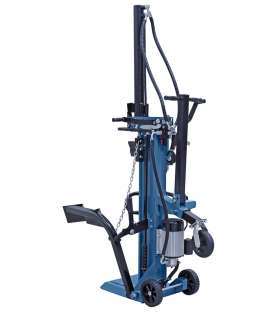

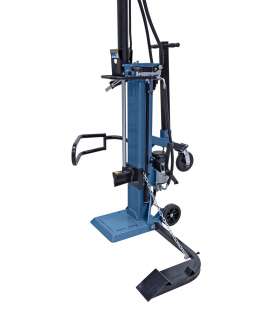

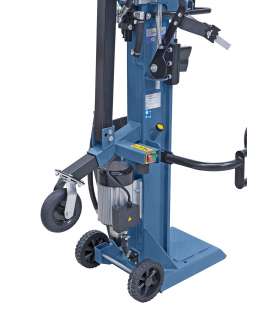

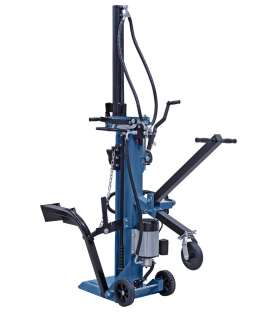

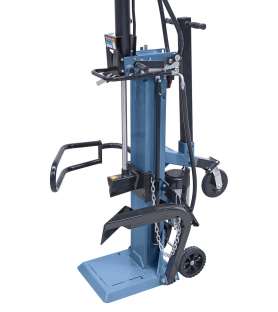

General description of the Bernardo HS11E 11-ton vertical log splitter :

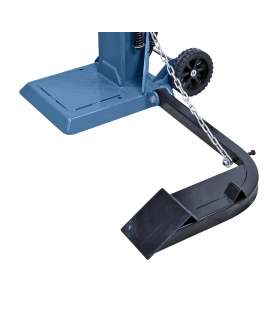

• Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
• Allows for cutting of short and long logs up to 1100 mm
• High quality powder coating ensures scratch proof surface

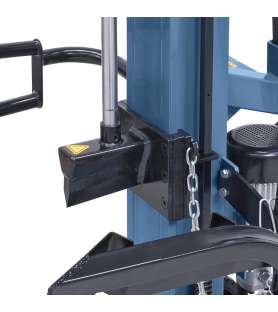

• Large splitting wedge features solid, durable plastic guide
• Stepless adjustable cutting stroke allows for less time consumption
• Low base plate with bevelled edge enables more convenient loading of large logs
• Lowerable cylinder reduces space requirements and simplifies transport
• Powerful hydraulic unit features high quality pressure hoses

The Bernardo HS11E 11-ton vertical log splitter is supplied with :

• Two-handed safety operation
• Log lifter
• Switch-plug-combination
• Oil filling
• Carriage
• Splitting wedge

Technical data of the Bernardo HS11E 11-ton vertical log splitter :

• Max. capacity : 11 to
• Log length : 560 – 1040 mm
• Log diameter : 100 – 300 mm
• Ram travel max. : 850 mm
• Forward speed : 13,9 cm/sec
• Working speed : 4,9 cm/sec
• Return speed : 6,0 cm/sec
• Hydraulic pressure : 25,5 Mpa
• Hydraulic tank : 7 l

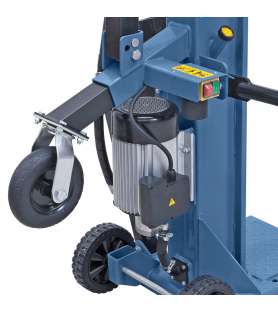

• Drive : E-Motor
• Motor power S6 40%  : 3,3 kW / 230 V
• Machine dimension (L x W x H)  : 1200 x 1500 x 2300 mm
• Weight approx. : 174 kg
