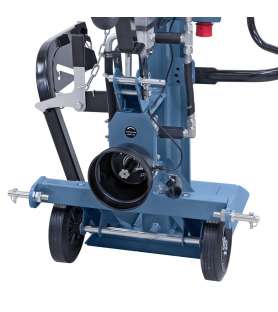

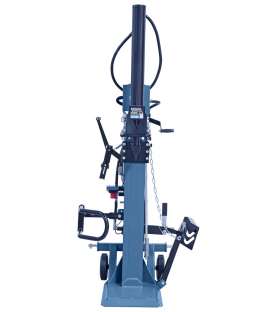

Bernardo HS22ZE 22 Ton Vertical Log Splitter with PTO or Electric Shaft Drive!

It is equipped with a lifting table for heavy logs allowing the split pieces to be held in place.

Advantages of the Bernardo HS22ZE 22 Ton Vertical Log Splitter :

• Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
• Allows for cutting of short and long logs up to 1100 mm
• Selection of PTO drive and electro/ PTO drive
• High quality powder coating ensures scratch proof surface
• Large splitting wedge features solid, durable plastic guide
• Stepless adjustable cutting stroke allows for less time consumption
• Low base plate with bevelled edge enables more convenient loading of large logs
• Lowerable cylinder reduces space requirements and simplifies transport
• Powerful hydraulic unit features high quality pressure hoses

Technical specifications of the Bernardo HS22ZE 22 Ton Vertical Log Splitter :

• Max. capacity : 22 to
• Log length : 560 – 1100 mm
• Log diameter : 80 – 350 mm
• Ram travel max. : 948 mm
• Forward speed* : 10,5 cm/sec
• Working speed* : 4,3 cm/sec
• Return speed* : 7,5 cm/sec
• Hydraulic pressure  : 27,5 Mpa
• Hydraulic tank : 24 l
• Drive : E-Motor and PTO
• Motor power S6 40% : 5,1 kW / 400 V
• Power take-off speed : 540 rpm
• Tractor capacity : > 20 HP
• Machine dimension (L x W x H) : 1400 x 1500 x 2500 mm
• Weight approx. : 314 kg

* Varying speed, depending on performance of tractor

The Bernardo HS22ZE 22-ton vertical log splitter is supplied with :

• Two-handed safety operation
• Three-point mounting with attachment pins
• Log lifter
• Switch-plug-combination
• PTO shaft with cover
• Oil filling
• Carriage
• Splitting wedge
