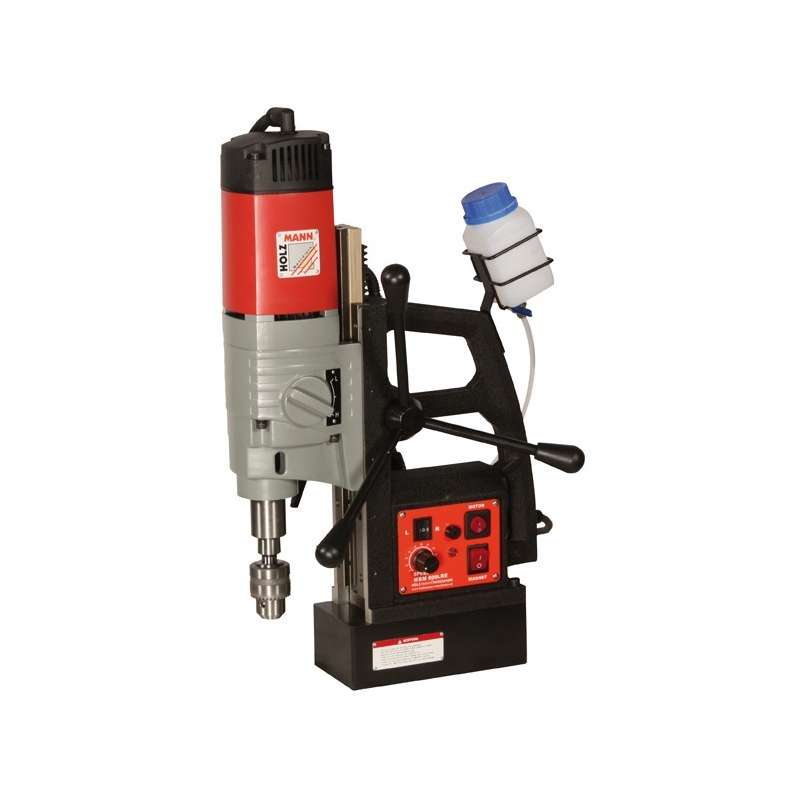

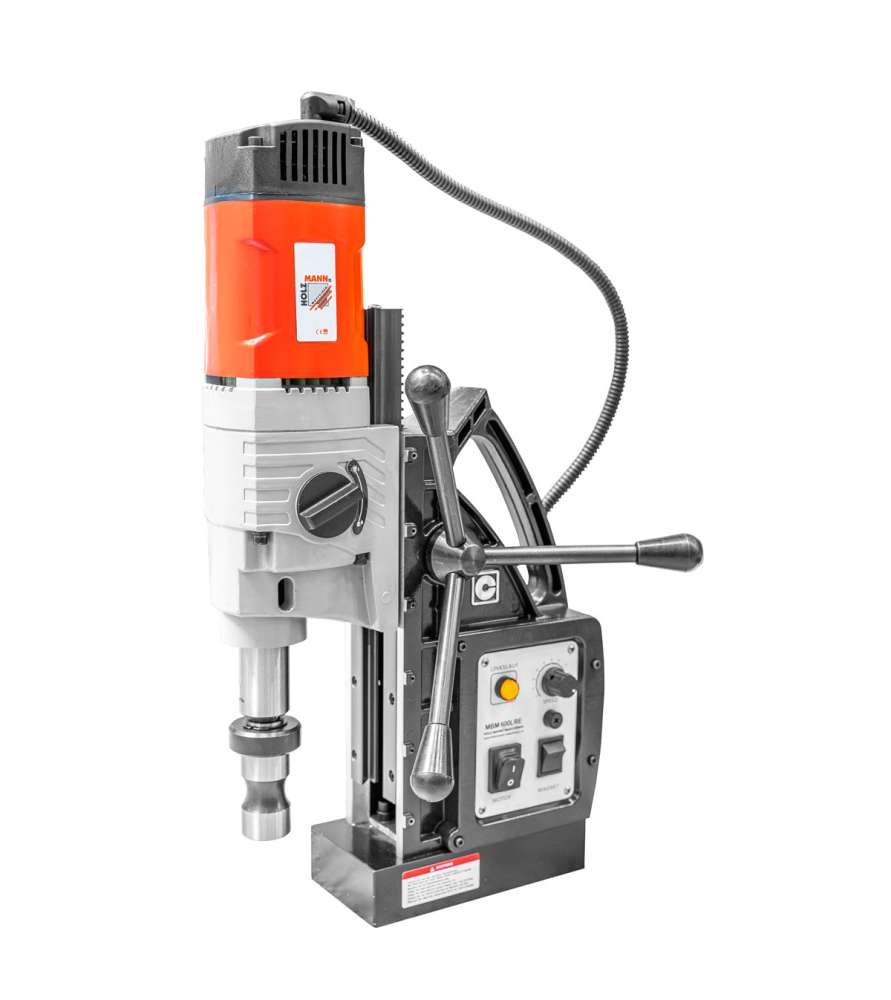

General description :

• For Base and tapped holes
• Ideal for machining of steel parts Lourdes
• Allows machining parts Mobile with precise guidance
• Also effective for vertical drilling accuracy
• The forest can be attached to each steel piece and in any position thanks to the electromagnet. Not from slip !
• The magnet ensures the security of work at height.
• Often used in the construction, the construction of bridges and shipbuilding.
• MFP with departure and return to adjustable speed, speed and thread commitment control system.

Technical characteristics :

• Drill Max diameter: Ø 60 mm
• Max drilling depth: 50mm
• Borehole diameter helical max: Ø 23 mm
• Drilling depth coil max: 210 mm
• Thread maximum: M18
• Drill max cutter diameter.  : Ø 32mm
• Torque: 14800N

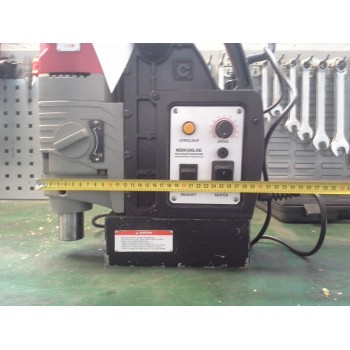

• The magnetic base dimensions: 205x107x68mm
• Chuck: MK3 / MT3

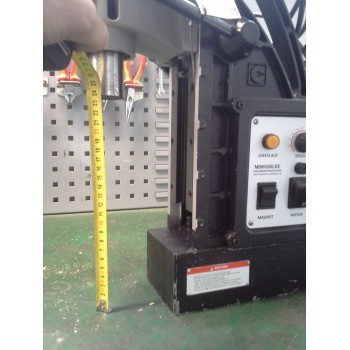

• Distance max. Chuck-base: 330 mm
• Motor power: 2080W
• Voltage: 230V
• Weight: 26 kg
