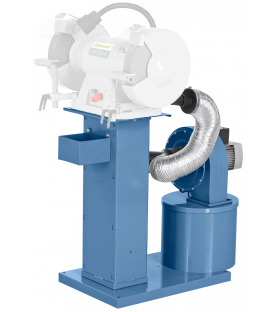

General description of the Bernardo MSA500 base with metal shavings suction system :

• Professional version – ensures optimal working conditions and clean air at the workplace
• As standard with large collector, emptying is possible without problem
• Equipped with a convenient water tank to cool machined parts
• High efficiency and quiet operation thanks to optimized blade shape
• Use on metal grinding machines such as e.g. belt sanders, double grinders...
• Static and dynamically balanced steel blade
• Minimal footprint for maximum power

The model D base with Bernardo MSA500 metal shavings suction system is delivered with :

• Filter bag
• Dust and chip tank
• 2 x aluminum suction hose diam. 100mm
• 2 x reducer 100 / 35 mm
• Y adapter 125 mm / 2 x 100 mm
• Water reservoir

Technical characteristics of the base with Bernardo MSA500 metal shavings suction system :

• Suction flow: 1275 m³/h
• Inner suction connection: 2 x 35 mm
• External suction connection: 2 x 50 mm
• Motor power: 0.37 kW
• Voltage: 400 V
• Support surface: 400 x 285 mm
• Height: 810 mm
• Weight (approx.): 50 kg
