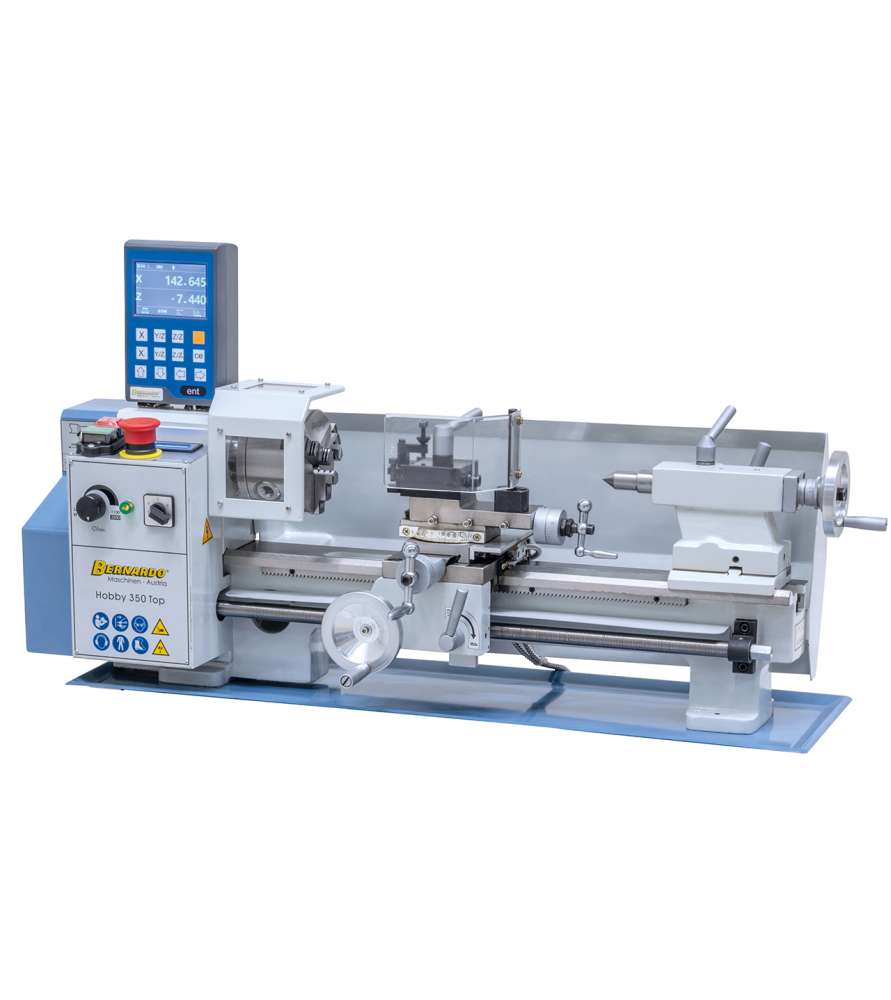

General description of the Bernardo Hobby 350 TOP metal lathe with 2-axis digital display DT40 :

• DC motor for optimal torque in the lower speed range
• High spindle nose concentricity (better than 0.015 mm) thanks to precision ball bearings
• Ideal for processing steel, non-ferrous materials and plastics
• Standard with front spindle for threading or automatic longitudinal feed
• Precise spindle bearing with 2 adjustable tapered roller bearings
• Powerful DC motor with 450 W drive power
• Standard with metal change wheels for cutting metric threads
• Versatile use: longitudinal turning, facing, boring, threading, etc.

The Bernardo Hobby 350 TOP metal lathe with 2-axis digital display DT40 is delivered with :

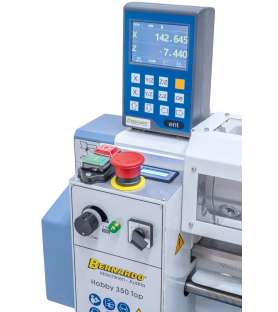

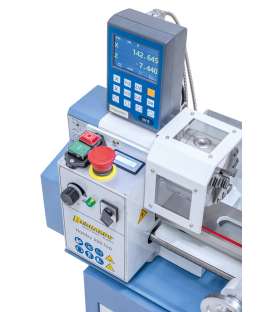

• DT 40 2-axis digital display

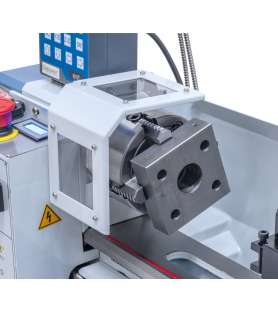

• 3-jaw chuck 100 mm
• Food protection

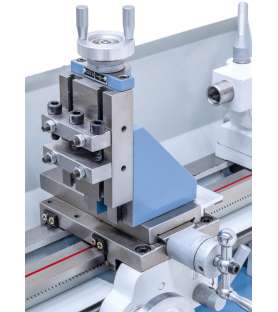

• Quick change tool holder with 4 inserts

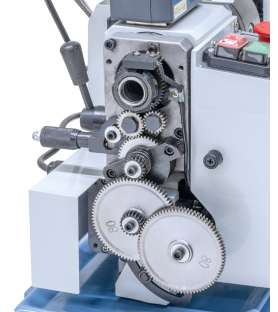

• Metal change wheels
• chip back wall
• Digital speed display
• Metal steering wheels
• Firm grain tips
• Operating tool

Technical characteristics of the Bernardo Hobby 350 TOP metal lathe with 2-axis digital display DT40 :

• Central width: 300 mm
• Central height: 90 mm
• Swing diameter above bed: 180 mm
• Rotation diameter on transverse slide: 110 mm
• Spindle bore: 20mm
• Registration in spindle bore: MK 3
• Speed range, continuously variable: 50 - 1100 / 120 - 2500 rpm
• Longitudinal feed range: 0.1 / 0.2 mm/rev
• Metric threads: (9) 0.5 - 2.5 mm
• Nib stroke: 60 mm
• Nib support: MK 2
• S1 100% motor output power: 0.45 kW
• S6 40% motor input power: 0.60 kW
• Machine dimensions (L x D x H)*: 880 x 320 x 310 mm
• Weight approximately: 52 kg
• * without base
