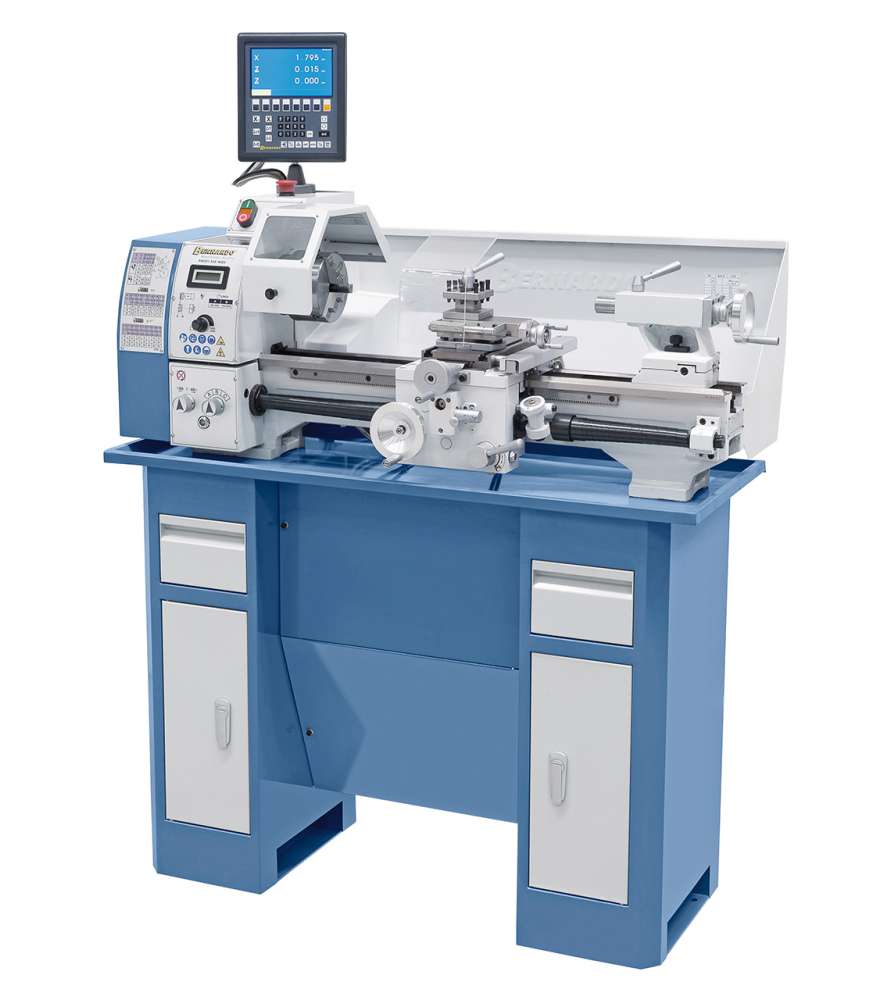

The Bernardo Profi 550 WQV metal lathe has a special feature that lies in its large longitudinal feed range!

Indeed, this lathe is equipped with 6 advance speeds, as well as a standard transverse feed.

Advantages of the Bernardo Profi 550 WQV lathe:

• Standard with lead screw for tapping and automatic longitudinal feed
• Sturdy frame with induction hardened bench slide and rectified
• High precision spindle nose concentricity (≤ 0.009 mm) thanks to quality bearings
• Standard with electronic speed variator
• Thermal monitoring with light alarm to protect the motor against overload
• Adjustable moving doll for machining conical parts
• Judicious positioning of orders
• Play catch-up guidance
• Spindle with 2 adjustable conical precision bearings (P5 quality)
• Standard with longitudinal and transverse feed
• Safety switch with undervoltage coil

Technical characteristics of the Bernardo Profi 550 WQV lathe :

• Between centers: 550 mm
• Height of tip: 125 mm
• Machinable diameter above the bench: 250 mm
• Bench width: 135 mm
• Spindle passage: 26 mm
• Spindle cone: CM 4
• Rotational speed range: variable, 50 - 1000 rpm - 100 - 2000 rpm
• Longitudinal feeds: (6) 0.06 - 0.32 mm / rev
• Cross feeds: (4) 0.03 - 0.075 mm / rev
• Metric Threads: (18) 0.2 - 3.5 mm
• Inch threads: (21) 8 - 56 tpi
• Stroke tailstock stroke: 70 mm
• Cone of the tailstock sheath: CM 2
• Continuous power S1 100%: 0.75 kW / 230 V
• Power S6 40%: 1.0 kW / 230 V
• Machine dimensions (W x D x H) *: 1210 x 610 x 450 mm
• Weight (approx.): 120 kg

Standard equipment of the Bernardo Profi 550 WQV lathe :

• 2-axis ES-12 V digital display with LCD display
• 3-jaw chuck DK11-125 mm
• Chuck mounting flange 125 mm
• Tool turret on longitudinal slide
• Digital speed indicator
• Fixed counter-points
• Apparatus to fall in the pitch for threading
• Interchangeable sprockets
• 4-position turret
• Chuck protection
• Rear cover
• Screw protector
• Service tools
