Metal lathe Bernardo Hobby 500 with digital display 2 axes DT 40 - 400V

2,095.00 € Tax included

Including €2.50 for ecotax

Reference: BHOBBY5002AX-400V

The Bernardo Hobby 500 metal lathe is equipped with a 6-speed gearbox for rapid rotation speed change and a DT 40 2-axis digital display device. With its compact dimensions, this machine is very quiet and offers a high precision work.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo Hobby 500 metal lathe with 2-axis digital display DT 40 - 400V :

  • Gearbox for quick and easy speed change
  • Prismatic bed induction hardened and ground
  • Backlash guides
  • Optimum price-performance ratio
  • Very handy machine with lead screw for tapping
  • Spindle mounted on 2 precision bearings
  • Tailstock offset for machining tapered parts
  • Safety switch with undervoltage coil
  • Compact design

The Bernardo Hobby 500 metal lathe with 2-axis digital display DT 40 - 400V comes with :

  • DT 40 2-axis digital indicator
  • 3-jaw chuck 100 mm
  • Interchangeable sprockets

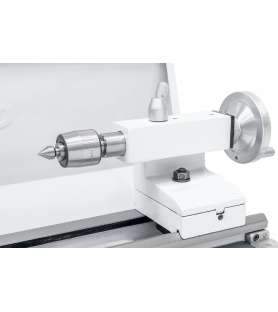

  • Fixed tailstocks

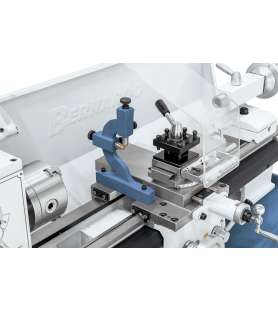

  • 4 position turret
  • Cross and top carriage
  • Chuck guard

Technical characteristics of the Bernardo Hobby 500 metal lathe with 2-axis digital display DT 40 - 400V :

  • Between centers: 500 mm
  • Peak height: 110 mm
  • Machinable diameter above bed: 220 mm
  • Spindle passage: 20 mm
  • Spindle taper: CM 3
  • Rotational speed range: 140 - 1710 rpm, 6 speeds
  • Longitudinal feeds: (4) 0.05 - 0.2 mm/rev
  • Metric Threads: (11) 0.4 - 3mm
  • Inch threads: (11) 8 - 28 TPI
  • Tailstock quill stroke: 45 mm
  • Tailstock quill cone: CM 2
  • Continuous power S1 100%: 0.55 kW / 230 V
  • Power S6 40%: 0.80 kW / 230 V
  • Machine dimensions (W x D x H)*: 1150 x 480 x 420 mm
  • Weight (approx.): 130 kg
  • * without base
BHOBBY5002AX-400V
