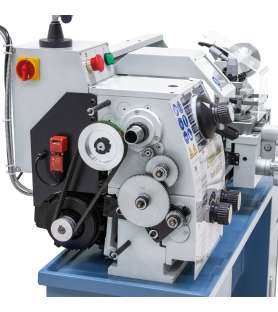

Metal lathe Bernardo Profi 650G with digital display 2 axes ES-12 V - 230V

3,845.00 € Tax included

Including €2.50 for ecotax

Reference: BPROFI650G2AX-230V

The Bernardo Profi 650G metal lathe is equipped as standard with a feed and feed spindle for threading or for automatic longitudinal and transverse feed. The 12-speed gearbox allows quick speed adjustment - no V-belt changes are necessary. Thanks to its compact design and high dead weight, this machine works very well and thus guarantees precise work.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo Profi 650G metal lathe with 2-axis digital display ES-12 V - 230V :

  • Quick and easy shifting with the manual transmission
  • High spindle nose concentricity (≤ 0.009 mm) thanks to precision tapered roller bearings
  • Powerful drive motor for high torque, speed range from 70 to 2000 rpm
  • Versatile applications: precision mechanics, training and learning workshops, ...
  • Power adjustment is simple, smooth and switchable with precision
  • Solid machine bed with induction hardened and ground bed guide
  • Ideal for processing steel, non-ferrous materials and plastics
  • With feed spindle for automatic longitudinal and transverse feed as standard
  • Carriage with fine scale handwheels

The Bernardo Profi 650G metal lathe with 2-axis digital display ES-12 V - 230V comes with :

  • ES-12V 2-axis digital readout with LCD display
  • 3-jaw chuck 125 mm
  • Flange 125mm
  • Cross slide with top support
  • Dead spots
  • wire dial
  • Gear switch
  • 4-position tool holder
  • LED machine lamp
  • Chuck housing
  • Splash guard
  • screw cover
  • Tools

Technical characteristics of the Bernardo Profi 650G metal lathe with 2-axis digital display ES-12 V - 230V :

  • Center distance: 650 mm
  • Center height: 140mm
  • Swing over the bed: 280 mm
  • Bed width: 160 mm
  • Spindle bore: 26mm
  • Recording in the spindle bore: MK 4
  • Speed range: (12) 70 - 2000 rpm
  • Longitudinal feed range: (15) 0.036 - 0.364 mm/rev
  • Cross Feed Range: (15) 0.019 - 0.188 mm/rev
  • Metric Threads: (27) 0.25 - 5mm
  • Inch Thread: (20) 6 - 96 Gg/1"
  • Barrel stroke: 105 mm
  • Penholder: MK 3
  • Motor output power S1 100%: 0.75 kW / 230 V
  • Motor input power S6 40%: 1.0 kW / 230 V
  • Machine dimensions (W x D x H)*: 1400 x 720 x 520 mm
  • Weight approximately: 202 kg
  • * without base
BPROFI650G2AX-230V
