Metal lathe Bernardo Profi 550 WQ - 230V
  • Metal lathe Bernardo Profi 550 WQ - 230V
  • Metal lathe Bernardo Profi 550 WQ - 230V
  • Metal lathe Bernardo Profi 550 WQ - 230V

Metal lathe Bernardo Profi 550 WQ - 230V

€2,197.50
1,995.00 € Tax included Save €200.00

Including €2.50 for ecotax (not impacted by the discount)

Reference: BPROFI550WQ-230V

The metal lathe precision Profi 550 WQ is manufactured according to the strictest requirements of the DIN standards. Its particularity lies in its wide range of longitudinal feed, 6 forward speeds to choose from, plus an advance cross-sectional series.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

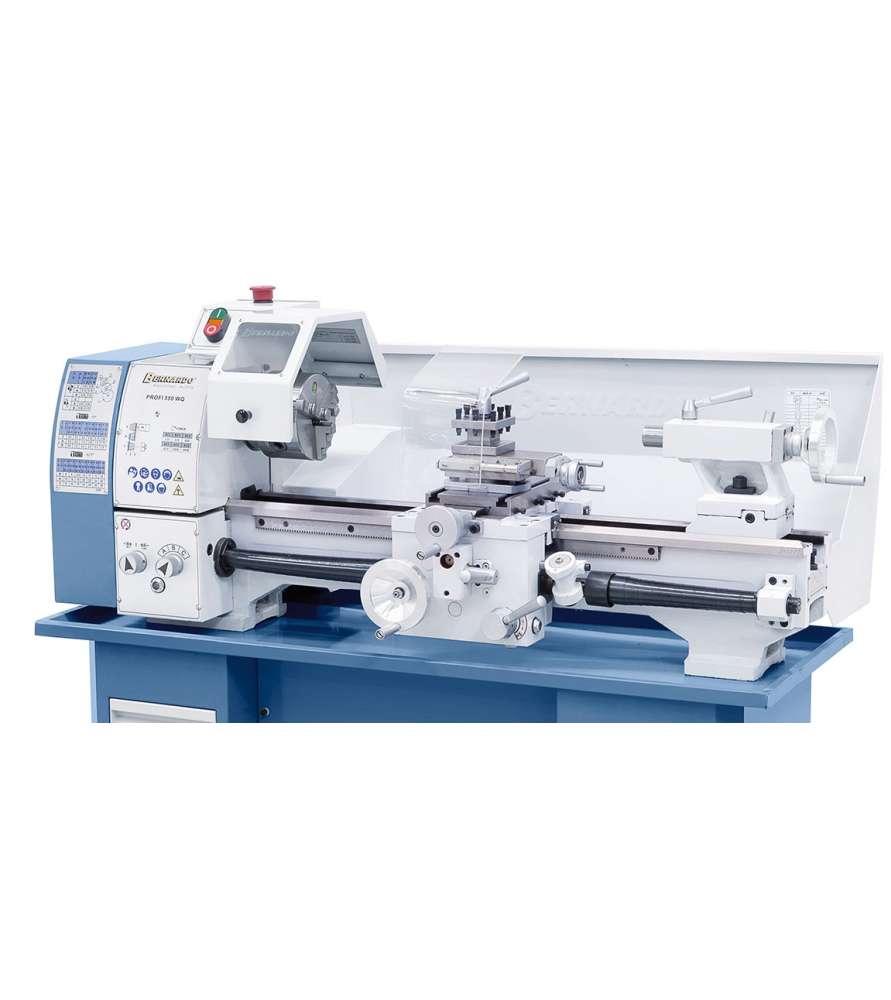

This Bernardo Profi 550 WQ metal lathe is a robust and precise machine!

It is equipped as standard with a lead screw for tapping and automatic longitudinal feed.

Advantages of the Bernardo Profi 550 WQ metal lathe:

  • Solid frame with induction hardened and ground bed slide
  • High spindle nose concentricity accuracy (≤ 0.009 mm) thanks to quality bearings
  • Thermal monitoring with light alarm to protect the motor against overload

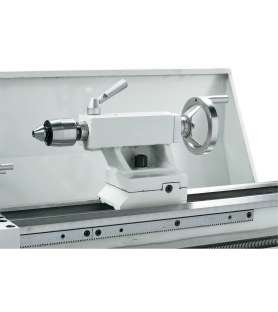

  • Adjustable tailstock for machining tapered parts
  • Judicious positioning of controls
  • Backlash guides
  • Spindle with 2 adjustable precision taper bearings (P5 quality)
  • Standard with longitudinal and transverse feed
  • Safety switch with undervoltage coil

Technical characteristics of the Bernardo Profi 550 WQ metal lathe:

  • Between centers: 550 mm
  • Peak height: 125mm
  • Machinable diameter above bed: 250 mm
  • Bench width: 135 mm
  • Spindle passage: 26 mm
  • Spindle taper: CM 4
  • Rotation Speed Range: (6) 125 - 2000 RPM
  • Longitudinal feeds: (6) 0.06 - 0.32 mm/rev
  • Cross feeds: (4) 0.03 - 0.075 mm/rev
  • Metric Threads: (18) 0.2 - 3.5mm
  • Inch threads: (21) 8 - 56 tpi
  • Tailstock quill stroke: 70 mm
  • Tailstock quill cone: CM 2
  • Continuous power S1 100%: 0.75 kW / 230 V
  • Power S6 40%: 1.0 kW / 230 V
  • Machine dimensions (W x D x H)*: 1210 x 610 x 450 mm
  • Weight (approx.): 120 kg
  • 3-jaw chuck DK11-125 mm

The Bernardo 550 WQ metal lathe comes with:

  • 3-jaw chuck DK11-125 mm
  • Flange 125mm
  • Cross and top carriage
  • Fixed tailstocks
  • Device to fall back into the pitch for threading

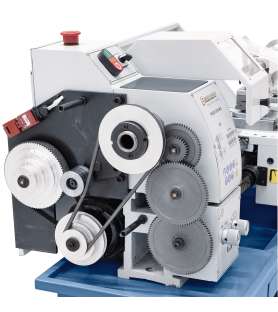

  • Interchangeable sprockets
  • 4 position turret
  • Chuck protection
  • Rear cover
  • lead screw protector
  • Service tools
