Metal lathe Bernardo standard 150 Plus - 400V

4,995.00 € Tax included

Including €2.50 for ecotax

Reference: BSTANDARD150PLUS

The Bernardo Standard 150 Plus metal lathe has many accessories and options, including a foot brake and a cooling system.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo Standard 150 Plus metal lathe is an ideal machine for the experienced DIYer.

This machine is suitable for leveling, longitudinal and transverse turning, parting off, conical turning and threading. It is ideal for working from home, turning brake drums, and general maintenance.

The advantages of the Bernardo Standard 150 Plus metal lathe:

  • Very practical machine with lead screw and turning bar for tapping and automatic feeding
  • Removable broken bench for machining large diameter parts
  • Massive ribbed prismatic bench to minimize oscillations
  • Simple, accessible and precise speed and feed adjustment controls
  • Heavily ribbed prismatic bench with induction hardened and ground slide
  • Tailstock offset of ±10 mm for machining tapered parts
  • Tailstock with clamping lever, crank with adjustable fine graduation (0.04 mm)
  • Sliding headstock, fixed headstock and all guides are adjustable
  • Graduated upper carriage (0.02 mm), swivel ± 45°

The safety features of the Bernardo metal lathe :

  • Emergency stop button, separate on and off buttons
  • Anti-splinter housing and chip tray
  • Tailstock protection
  • Mechanical brake

The metal lathe comes with:

  • 3-jaw chuck DK11-160 mm / D4

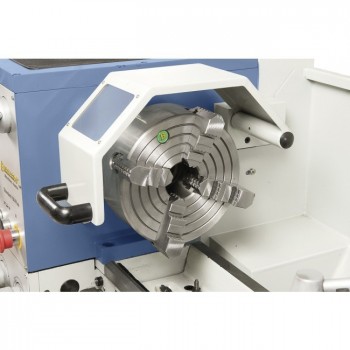

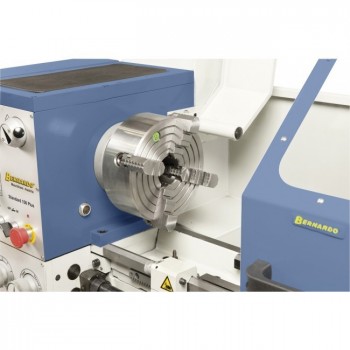

  • Independent chuck 200 mm / D4, DIN 55029
  • Fixed bezel - maximum passage ø 60 mm
  • Mobile bezel - maximum passage ø 60 mm
  • Mounting flange 250 mm

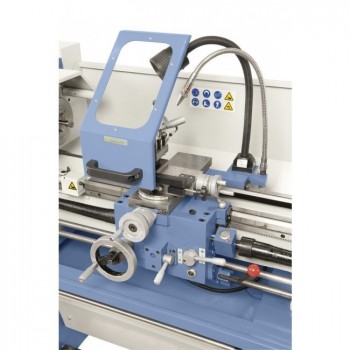

  • 4 position turret
  • 4 position turret protector
  • Torque limiter
  • Micrometric longitudinal guide
  • Removable chip tray
  • safety cover
  • 2 centering drills
  • Device to fall back into the step for threading
  • Reduction cone
  • LED lighting
  • Interchangeable gears
  • Watering device
  • CE standard magnetic brake motor
  • CE brake pedal
  • Basement
  • Service tools

Technical characteristics of the standard Bernardo 150 Plus :

  • Between centers: 1000 mm
  • Point height: 165 mm
  • Machinable Ø on the bench: 330 mm
  • Max Ø under the broken bench*: 430 mm
  • Max Ø above the carriage: 180 mm
  • Bench width: 180 mm
  • Spindle bore: 40 mm
  • Spindle speed: 9 from 75 - 1400 rpm
  • Longitudinal feed: (40) 0.053 - 1.29 t/mm
  • Transverse feed: (40) 0.013 - 0.31 t/mm
  • Metric thread: (32) 0.4 - 7 mm
  • Thread Inch: (36) 4 - 60 TPI
  • Tailstock quill travel: 110 mm
  • Tailstock cone: CM3
  • Continuous power S1: 1.5 KW - 400V
  • S6 power: 2.2 KW - 400V
  • Dimensions: 1600 x 700 x 1280 mm
  • Weight: 470 kg
  • * Length of removable broken bench: 220 mm
