General description :

• Many possibilities of use
• High speed range (2 levels) from 100 to 2000 RPM
• Guide dovetail on all axles, adjustable through shims
• Positioning of milling by graduated crank pin
• Series with the milling spindle left/right rotation
• Excellent concentricity of spindle thanks to the precision bearings
• Electronic training continuously for precise work
• Scale for reading the depth of hole
• Cast iron grey, stable and vibration free mount

Technical characteristics :

• Drilling in steel capability: 10 mm
• Strawberry max.: 20 mm
• Forest max.: 10 mm
• Axis-column distance: 140 mm
• Pin-table distance: 80-260mm
• Spindle travel: 30 mm
• Spindle speed: L = 100 - 1000 rpm: = 100 - 2000 RPM
• Spindle taper: MT 2

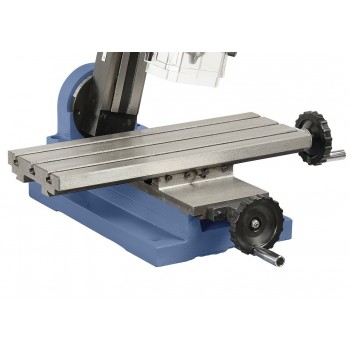

• Table size: 400 x 145 mm
• Head height: 180 mm
• Head tilt:-45 ° to + 45 °
• T-slot size: 8 mm
• The engine power output 100% S1: 0.25 kW
• The engine power input S6 40%: 0.35 kW
• Voltage: 230 V
• Dimensions of the machine (L x w x H): 420 x 343 x 720 mm
• Weight: 50 Kg

Delivered with :

• Key 1-10 mm mandrel / B 12
• Tree of mounting of the Chuck CM 2 / B 12
• Protector adjustable in height
• 4 nuts for M6 T-slots
• Service tools
