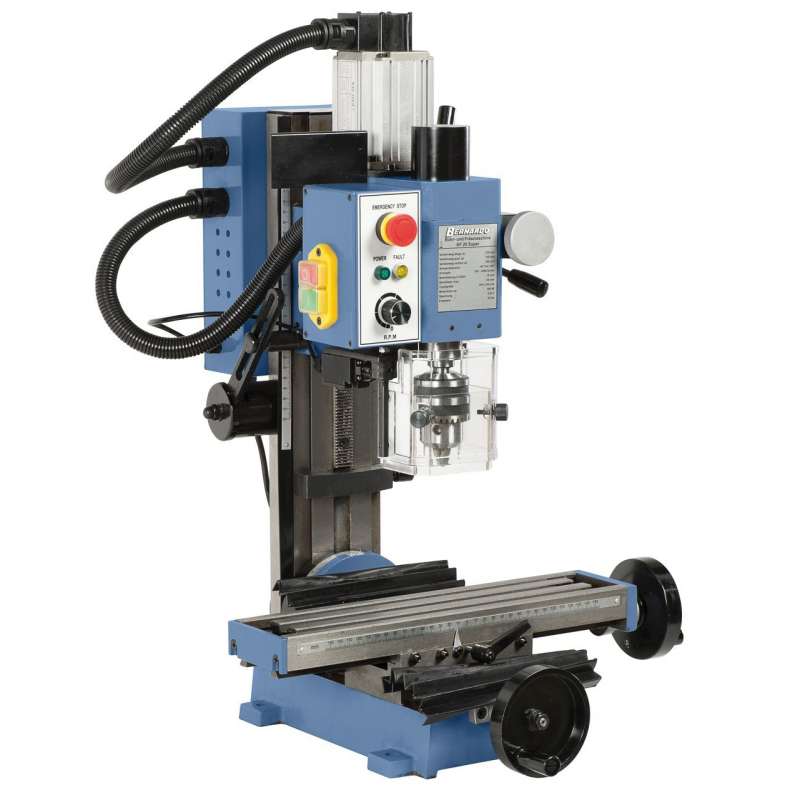

Milling machine metal Bernardo KF20 Super - 230V

1,195.00 € Tax included

Including €2.50 for ecotax

Reference: BKF20SUPER-230V

The milling machine drill KF20 Super is a improved version of KF 20. THE powered drive continuous ensures a race smooth.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

This Bernardo KF20 Super metal milling drill has a silent 500 W motor!

It is in fact equipped with a brushless DC motor optimizing cutting at low speed.

Advantages of this Bernardo KF20 Super metal milling drill:

  • Dovetail guidance in x, y and z, adjustable by adjusting shim
  • Milling head swiveling on both sides for corner drilling, chamfer milling, etc.
  • Individual locking of guides for clean work
  • Lowering and raising of spindle by lever, precision adjustment by crank
  • Cross table with precision surface and T-slots
  • Variable speed drive for optimal adaptation to the room

Technical characteristics of this Bernardo KF20 Super metal milling drill:

  • Drilling capacity in steel: 13 mm
  • Strawberry max. : 30 mm
  • Max drill : 16 mm
  • Distance from axis to column: 165 mm
  • Spindle-table distance: 95 - 285 mm
  • Spindle speed: 100 - 2500 rpm
  • Displacement (x / y): 235/100 mm
  • Spindle taper: MT 3
  • Table dimensions: 405 x 90 mm
  • Table tilt: -45 ° to 45 °
  • Head adjustment height: 190 mm
  • T-slot size: 12 mm
  • Motor power output S1 100%: 0.5 kW / 230 V
  • Motor power input S6 40%: 0.75 kW / 230 V
  • Machine dimensions (L x W x H): 520 x 500 x 740 mm
  • Weight: 50 kg
  • Delivered without the base

This Bernardo KF20 Super metal milling drill comes with:

  • Chuck 1 - 13 mm / B 16
  • MT 3 / B 16 arbor
  • Drawbar M 12
  • Height-adjustable protective cover
  • Tools
