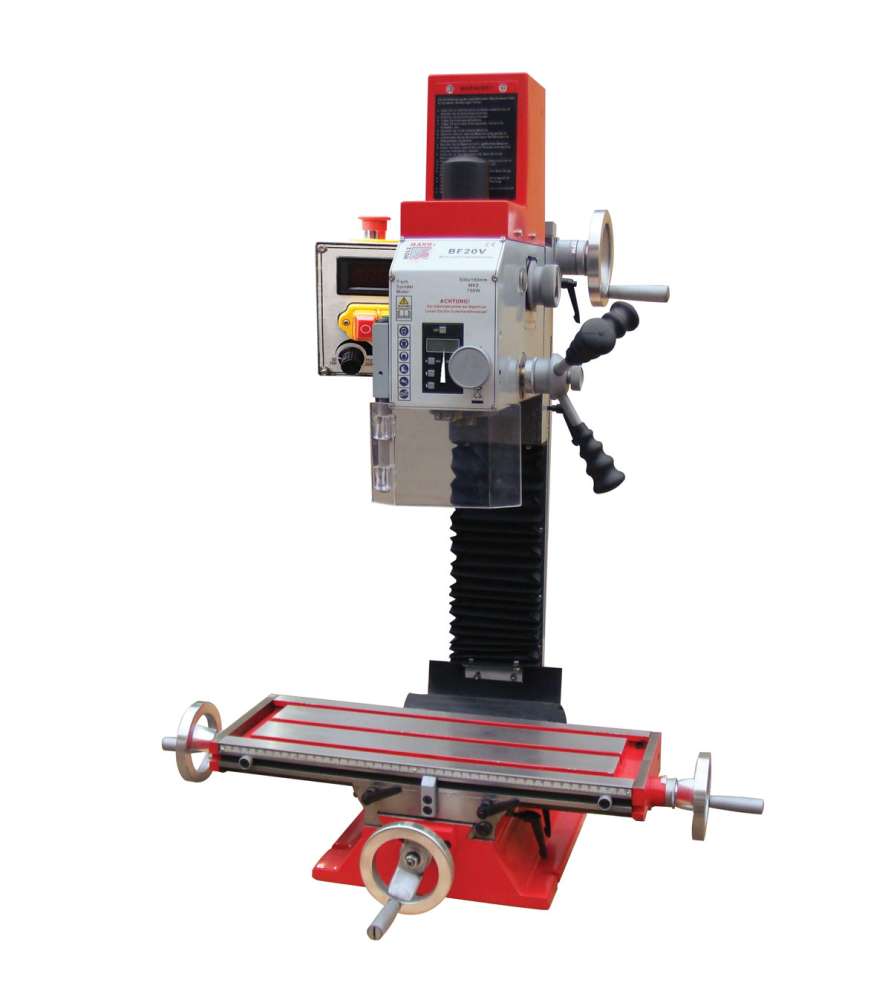

The Holzmann BF20V metal drill milling machine is ideal for schools, precision mechanics and DIY enthusiasts!

This machine allows a wide range of application thanks to the rotary gears!

Advantages of the Holzmann BF20V metal drilling machine:

• Variable speed control with digital indicator
• Digital indication for standard drilling depth
• Right / left rotation switch
• Guiding of the cross table and milling head by dovetail
• Wide application range, thanks to rotating gears
• Independent flywheel during milling operations
• Spindle lowering by capstan during drilling operations
• High quality cross table with scale and stops

Technical characteristics of the Holzmann BF20V metal drilling machine:

• Voltage: 230 V
• Power: 700 W
• Spindle cone: MK2
• Speeds: 50 - 2250 rpm
• Drilling capacity in steel: 20 mm
• Milling capacity in steel: 16 mm
• Chuck / table distance: 380 mm
• Table dimensions: 180 x 500 mm
• Max load on the table: 55 kg
• Head tilt: + 90 ° / - 90 °
• T-slot width: 12 mm
• Axis stroke: 115 x 380 x 280 mm
• Total height: 930 mm
• Gooseneck: 200 mm
• Package: 870 x 610 x 570 mm
• Gross weight: 110 kg
• Net weight: 103 kg

The Holzmann BF20V metal drilling machine is delivered with:

• Chuck MK2 / B16
• Digital speedometer
• Digital depth indicator
• MT2 / M10 connection
• Tools
