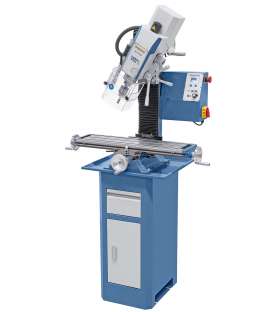

General description of the Bernardo KF28Top metal milling machine:

• Wide speed range 50 - 2600 rpm, optimum torque transmission via 2-speed gearbox
• Adjustable speed with variator to adapt to the room
• Model also available with variable table feed and 3-axis position display

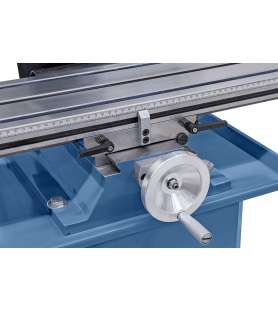

• Generously dimensioned cross table with precision surface and T-slots
• Multiple possible uses: mortising, surfacing, boring, etc.
• DC motor for torque optimization at low speeds
• Milling head can be swiveled on both sides for corner drilling, chamfer milling, etc.
• With EMC filter, protects electrical devices against electromagnetic interference
• As standard with reversal of the direction of rotation for tapping
• Excellent spindle rotational concentricity ensured by tapered bearings (≤ 0.015 mm)
• Dovetail guidance in x, y and z, adjustable by adjusting wedge
• Spindle lowering and raising by lever, precision adjustment by crank

The Bernardo KF28Top metal milling machine comes with:

• Key chuck 3 - 16 mm / B 16
• CM 3 / B 16 chuck mounting shaft
• Tie rod
• LED lighting
• Digital depth indicator
• Digital speed indicator
• CE standard EMC filter
• Height adjustable protector
• Energy cable
• Service tools

Technical characteristics of the Bernardo KF28Top metal milling machine:

• Steel drilling capacity: 25 mm
• Max surfacing capacity: 63 mm
• Maximum milling capacity: 25 mm
• Gooseneck: 170 mm
• Spindle distance / mini/maxi table: 50 / 315 mm
• Spindle stroke: 52 mm
• Spindle speed, variable: 50 - 1400 / 100 - 2600 rpm
• Spindle taper: CM 3
• Table dimensions: 700 x 180 mm
• Stroke (x/y): 490 / 150 mm
• Swivel milling head: -90° to +90°
• Milling head height adjustment: 265 mm
• Dimensions T-slots: 12 mm
• Continuous power S1 100%: 0.90 kW / 230 V
• Power S6 40%: 1.35 kW / 230 V
• Machine dimensions (W x D x H)*: 940 x 650 x 930 mm
• Weight (approx.): 135 kg
• * without base
