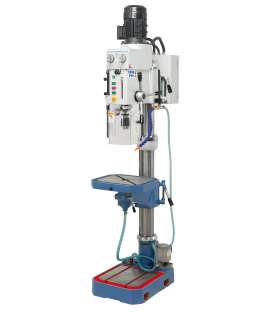

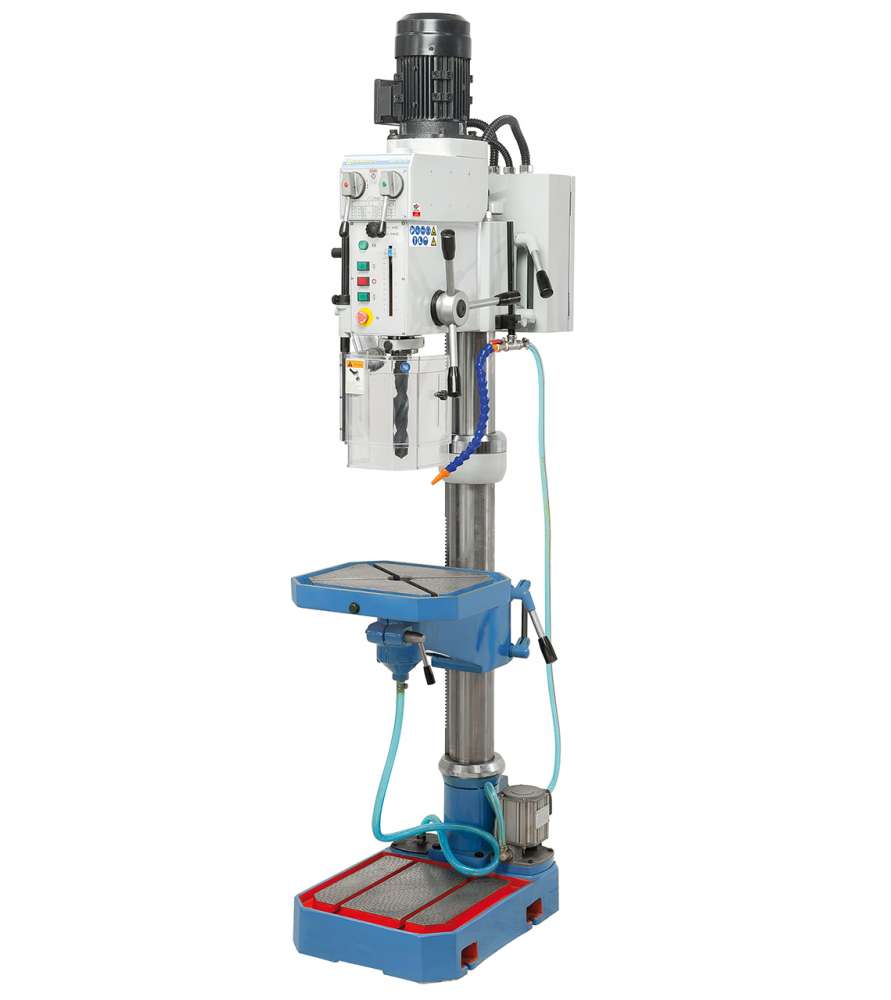

General description of the Bernardo GB30S metal drilling and milling machine with watering device - 400V :

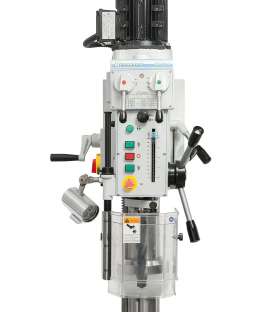

• Speed adjustment by lever on the head
• Graduated depth stop
• Guaranteed concentricity accuracy ≤ 0.02 mm measured at the spindle
• Reversing the direction of rotation for tapping

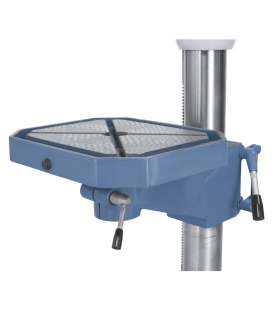

• Gray cast iron table with T-slots and cutting fluid evacuation channel
• Automatic ejector and LED lighting included
• Ground base with T-slots for clamping bulky parts
• Precision bearings that ensure high spindle concentricity
• Hardened and ground gears for quiet operation
• Rectified steel column designed to meet high demands

The Bernardo GB30S metal drilling and milling machine with watering device - 400V is delivered with :

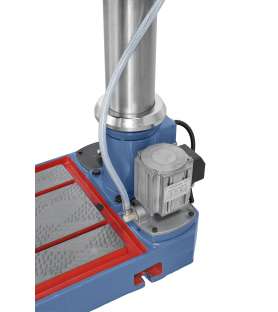

• Watering device
• Keyed chuck 1 - 13 mm / B 16
• Chuck mounting shaft CM 3 / B 16
• Reduction cone CM 3/2, CM 3/1
• Automatic tool ejector

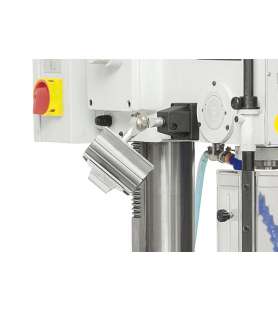

• LED lighting
• Height adjustable protector

Technical characteristics of the Bernardo GB30S metal drilling and milling machine with watering device - 400V :

• Maximum drilling diameter: 30 mm
• Maximum thread: M16
• Drill chuck: 1 - 13 mm / B 16
• Morse taper: CM 3
• Spindle speed: (6) 125 - 2825 rpm
• Swan neck: 240 mm
• Maximum spindle/table distance: 655 mm
• Spindle/base distance: 1130 mm
• Spindle travel: 115 mm
• Column diameter: 100 mm
• Table dimensions / T-slots: 405 x 335 mm / 14 mm
• Base working surface: 320 x 315 mm
• Continuous power S1 100%: 0.75 kW / 400 V
• S6 power 40%: 1.1 kW / 400 V
• Machine dimensions (L x D x H): 500 x 700 x 1910 mm
• Weight (approx.): 235 kg
