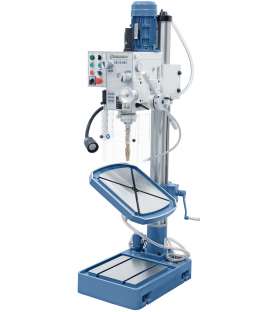

Bernardo GB35HSV metal milling drill with watering device - 400V
3,895.00 €
Tax included
Including €2.50 for ecotax
Reference: BGB35HSV-AR
The GB 35 HSV model is the ideal machine for mechanical workshops, repairers and in the field of training due to the wide speed range (75 - 3200 rpm) as well as the numerous equipment (e.g. automatic feed of the spindle, pivoting drilling table, watering device, LED work light, etc.).
-
Totally secure payment!
-
Be delivered where you want!
-
14 days to change your mind!
General description of the Bernardo GB35HSV metal drilling and milling machine with watering device - 400V :
- Powerful 2-speed motor, speed range 75 - 3200 rpm
- Rectified steel column designed to meet high demands
- Standard with digital spindle depth indicator and LED lighting
- Standard with automatic spindle descent and tapping device
- Simple gear change by lever
- Milling head tilts 180°, swivels 360° and height adjustable
- Quiet operation with oil-bathed and ground gears
- Spindle descent with manual/micrometric switching
- Quality bearings for excellent spindle concentricity
- Height-adjustable chuck guard with microswitch for maximum safety
The Bernardo GB35HSV metal milling drill with watering device - 400V is delivered with :
- Quick-release chuck 1 - 16 mm / B 16
- Chuck mounting shaft CM 4 / B 16
- Watering device
- CM 4/3 reduction cone
- Automatic spindle descent
- Height adjustable protector
- Digital drilling depth indicator
- Tapping device
- LED lighting
- Service tools
Technical characteristics of the Bernardo GB35HSV metal drilling and milling machine with watering device - 400V:
- Maximum drilling diameter: 32 mm
- Drill chuck: 1 - 16 mm / B 16
- Morse taper: CM 4
- Spindle speed: (12) 75 - 3200 rpm
- Feed speed range: 0.10 / 0.18 / 0.26 mm/rev
- Swan neck: 295 mm
- Maximum spindle / table distance: 775 mm
- Spindle / base distance: 1185 mm
- Spindle travel: 125 mm
- Column diameter: 115 mm

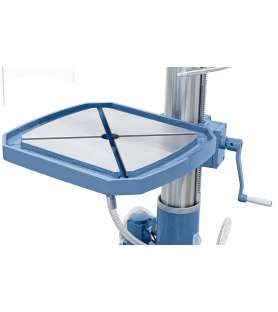

- Table dimensions: 500 x 455 mm
- T-slot dimensions: 14 mm
- Base working surface: 375 x 365 mm
- Continuous power S1 100%: 1.1 / 1.5 kW (400 V)
- S6 power 40%: 1.5 / 2.2 kW (400 V)
- Machine dimensions (L x D x H): 630 x 700 x 2050 mm
- Weight (approx.): 340 kg
