This machine is the ideal solution for sanding all types of shapes and materials.

It allows universal use for sanding edges, surfaces and curves.

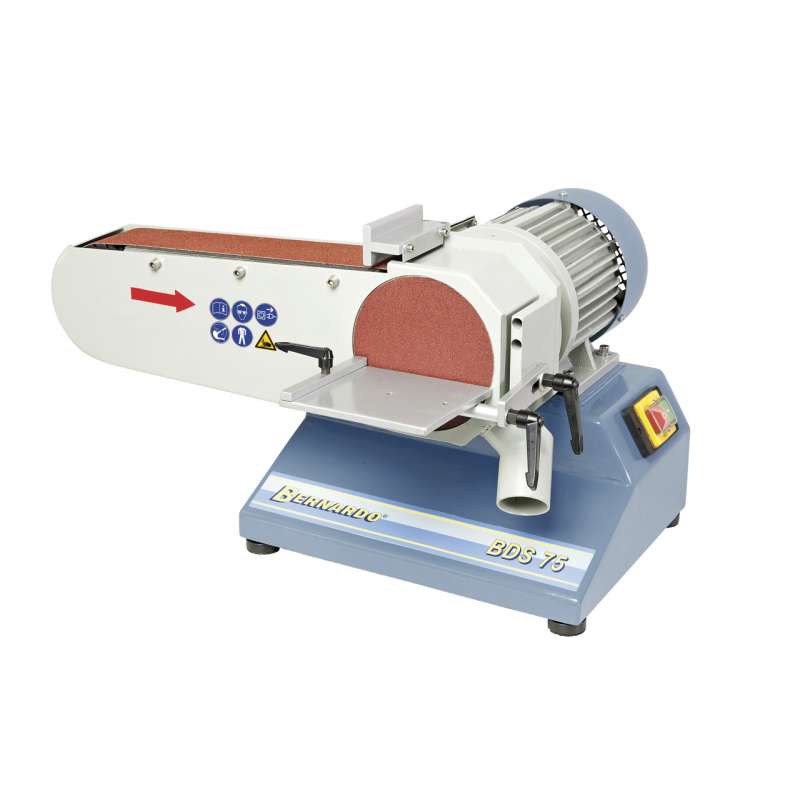

General description of the Bernardo BDS75 stationary metal belt sander :

• Graphite belt on the sanding support to increase the sliding of the abrasive belt
• High belt speed for efficient sanding
• Quick change from horizontal to vertical
• Vibration-free operation thanks to the stable and undeformable machine frame
• Quick deburring of edges, cleaning of weld seams
• Velcro-attached sanding disc ideal for frequent grain changes
• Easy to replace band, manual tension adjustment

Technical characteristics of the Bernardo BDS75 stationary metal belt sander :

• Sanding belt: 75 x 1180 mm
• Belt speed: 11 m / sec
• Belt sanding table: 280 x 80 mm
• Tilting sanding table belt: 0 ° to 90 °
• Sanding disc diameter: 150 mm
• Sanding disc table: 150 x 130 mm
• Tilting disc sanding table: 0 ° to 45 °
• Suction plug: 50 mm
• Motor power output S1 100%: 1.1 kW
• Motor power output S6 40%: 1.5 kW
• Voltage: 400V
• Machine dimensions (W x L x H): 470 x 720 x 520 mm
• Weight approx: 65 kg

The Bernardo BDS75 stationary metal belt sander is delivered with:

• Abrasive belt grit 80
• 80 grit sanding disc
• Sanding workpiece support
• Graphite strip
• Suction nozzles
