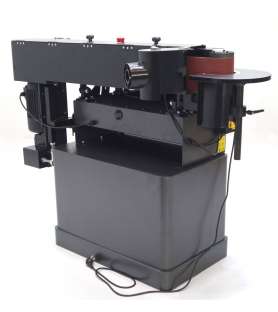

General description of the Holzprofi Maker ES6108 oscillating belt sander :

• The aggregate tilts from 90° to -90°, by crank, allowing bevel sanding and flat sanding.
• The covers are quickly removable, so sanding long pieces is done more quickly.
• Angle sanding is very precise thanks to the angle stop supplied as standard.
• Comes with a band.

Technical characteristics of the Holzprofi Maker ES6108 oscillating belt sander :

• Front table dimensions: 900 x 300 mm
• Head tilt: 90° to -90°
• Table for curvilinear sanding: 290 x 255 mm
• Sanding cylinder diameter 38.50 and 76 mm height 115 mm
• Length x width of the strip 2740 x 150 mm
• Sanding belt speed (m/s) 16
• Amplitude of oscillation 20 mm
• Suction diameter: 100 mm
• Dimensions L x W x H: 1540 x 520 x 1150 mm
• Motor power 400V/50Hz: 2.2Kw/3CV
• Rotation speed 1720 rpm
• Weight kg 225

Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are put on correctly, tighten the bolts, etc. because different transports cause vibrations.
• Always use an extension cord with a 2.5² wire size
• The extension cord must not exceed 10 meters and must not be coiled
• The use of drums, triplets or multi-grips is PROHIBITED.
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the warranty of the machine
• Always grease cast iron tables with wood slider
• Always work with protections in place
• Do not work with unsharpened or dull tools as this may damage the internal mechanism.
