Equipped as standard with a 2.2 kW motor and a saw blade with a diameter of 254 mm for cutting heights of up to 80 mm.
Its application finds this model mainly in home improvement as well as in small businesses as a second machine.

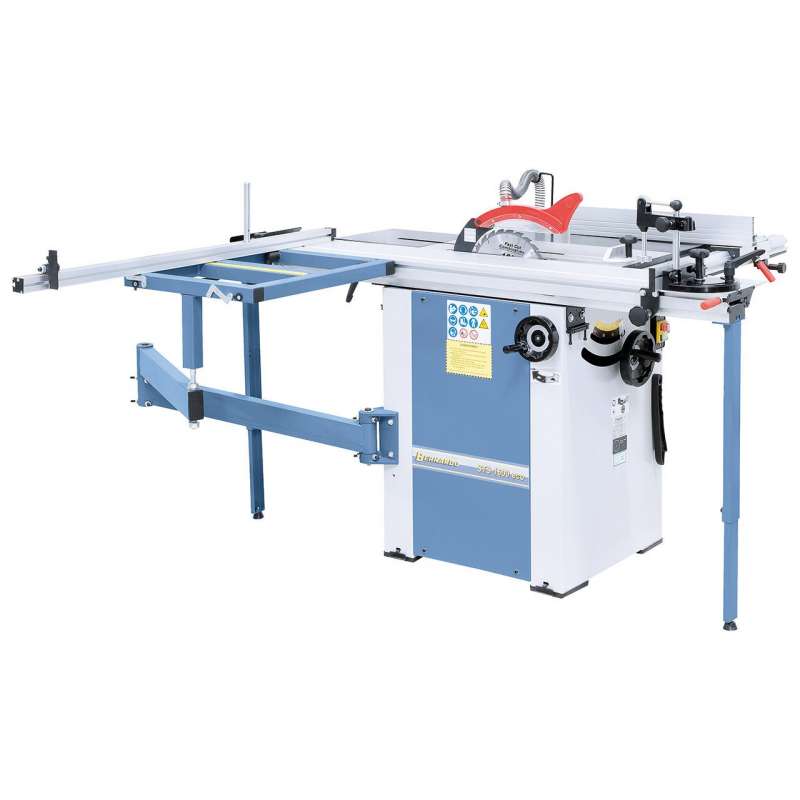

Advantages of the Bernardo STS 1600 ECO sliding table saw :
Aluminium sliding table with a support surface of 1600 x 240 mm
The powerful drive motor ensures optimum cutting performance even during prolonged operations
For laying large panels equipped as standard with table widening and extension
For optimum working conditions, a suction unit can be connected to the 100 mm hose connection
Tilt adjustment of the saw blade up to 45 ° depending on the scale via handwheel
Grey cast iron table with T-fence for the mitre guide
Large machine table made of cast iron, machined and polished
Machine body made of a grey cast iron construction made of torsion-resistant steel
All aluminium parts (table format, stops, ...) are anodised
The standard table widening makes it easier to cut large panels
Important recommendation from Probois for many woodworking machines :
Before starting up always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
Always use an extension cord with a 2.5² wire thickness
The extension cord must not exceed 10 meters and must not be coiled
The use of a reel, triplets or multi-socket is PROHIBITED
Have a standard electric meter with neutral and earth
Always work with a chip vacuum cleaner for your health and for the machine warranty
Always work with the protections in place
Do not work with dull or blunt tools, this can damage the internal mechanism.
Technical data of the Bernardo STS 1600 ECO sliding table saw :
Table dimensions: 670 x 310 mm
Table format: 1600 x 240 mm
Edge length: 1600 mm
Maximum saw blade diameter: 254 x 30 mm
Max. cutting height: 90 ° / 45 ° 80/63 mm
Cutting width at the rip fence: 690 mm
Table height: 870 mm
Table extension: 325 x 310 mm
Table extension: 670 x 400 mm
Jib table: 600 x 455 mm
Main saw blade speed: 4750 rpm
Vacuum connection: Ø 100 mm
Motor power: S1 100% 2.2 kW (3.0 HP)
Motor power: S6 40% 3.0 kW (4.0 hp)
Voltage: 230V or 400V
Machine dimensions (W x D x H): 1600 x 2160 x 1130 mm
Weight approx.: 140 kg
The Bernardo STS 1600 ECO sliding table saw is supplied with:
