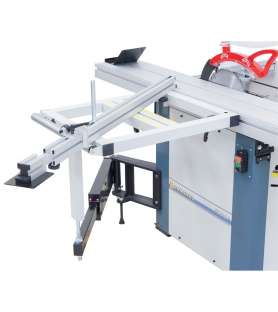

The Bernardo TK315P Sliding table saw with 2000 mm carriage has a large 2000 mm blade-level carriage with telescopic ruler.

It offers a cutting height of 100 mm. The scoring saw ensures chip-free work in delicate panels to be machined. The cast iron tables ensure perfect stability. Equipped with rear and side extensions and a support foot for working with large wooden panels.

The advantages of the Bernardo TK315P Sliding table saw :

• The scoring saw placed in front of the blade makes it easier to cut melamine panels and prevents surface coatings from chipping.
• The side table extensions increase the cutting capacity and hold large panels.
• The angle guide has stops at 90 and 45°.
• The parallel guide is easily locked by a single lever and is equipped with a micrometric screw adjustment.
• The flush blade carriage also includes an angle guide that slides into the slot of the carriage and locks in this position.
• 1 presser blocks the parts resting on the table.
• The aluminum profile support guide adjusts according to the cutting angle and includes an extension up to 2200 m/m.
• The motor unit is perfectly held in a tilting cast iron frame and increases working precision.
• The carriage extension is equipped with a roller to easily maneuver long parts.

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with dull or blunt tools, this can damage the internal mechanism.

Technical characteristics of the Bernardo TK315P Sliding table saw :

• Rotation speed 4000 RPM
• Rotation speed of the scoring blade: 5800 RPM
• Blade diameter: 315 mm
• Blade bore: 30 mm
• Scoring blade diameter: 90 mm
• Scoring blade bore: 20 mm
• 90º cutting capacity: 100 mm
• 45º cutting capacity: 80 mm
• Carriage stroke: 2000 mm
• Capacity between guide and blade: 1260 mm
• Suction nozzle diameter: 100 mm
• Dimensions: 2000 x 2800 x 1200 mm
• Weight: 260 Kg
• 400V motor power:
• S1 100% = 3.0 KW (4 HP)
• S2 40% = 4.2 KW ( 5.7 HP)

The Bernardo TK315P Sliding table saw is supplied with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / Z12
• Blade protection with suction nozzle
• Flexible with bracket
• Mitre guide with eccentric flange
• Mitre guide
• Pantograph support
• Table extension
• Side table extension
• Telescopic guide
• Finely adjustable longitudinal guide
• Sliding roller table
• Push rod
• Service tools

Same machine as the Holzmann TS315VF and the Jean l'ébéniste SAF2000I
