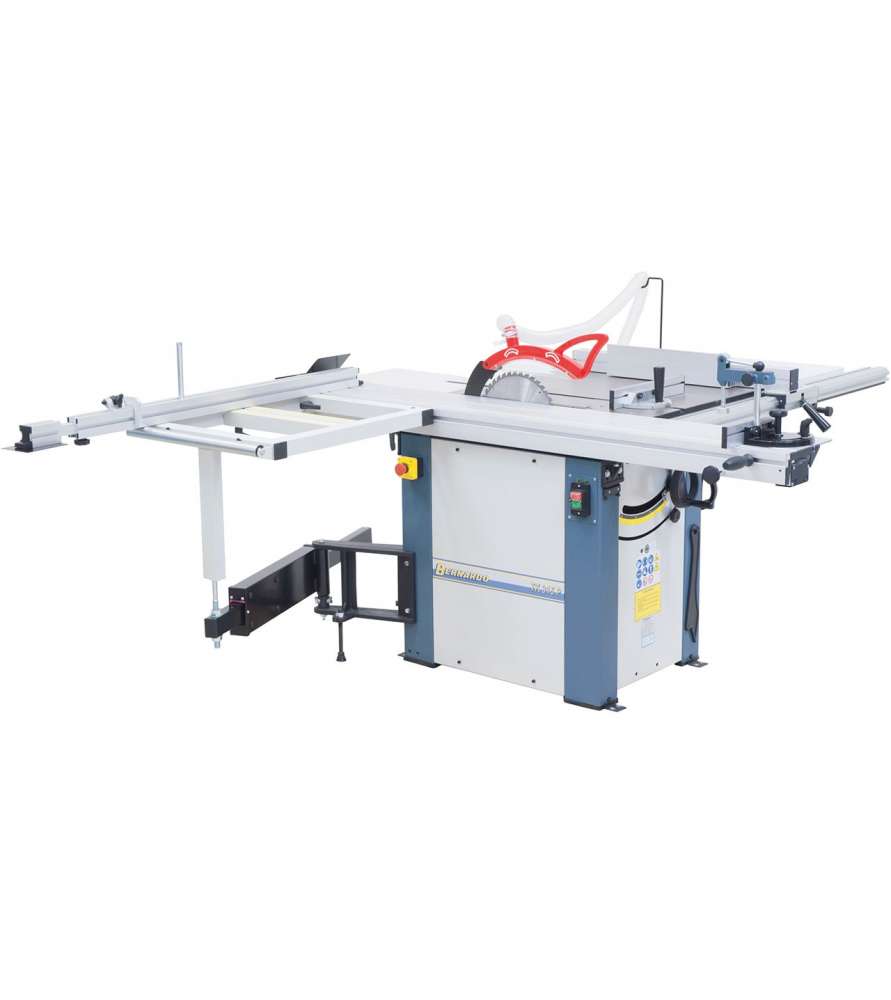

The Bernardo TK315P Sliding table saw with 1600 mm carriage has a large 1600 mm blade-level carriage with telescopic ruler.
It offers a cutting height of 100 mm. The scoring saw ensures chip-free work in delicate panels to be machined. The cast iron tables ensure perfect stability. Equipped with rear and side extensions and a support foot for working with large wooden panels.
The advantages of the Bernardo TK315P Sliding table saw :
The scoring saw placed in front of the blade makes it easier to cut melamine panels and prevents surface coverings from chipping.
The side table extensions increase the cutting capacity and hold large panels.
The angle guide has stops at 90 and 45°.
The parallel guide is easily locked by a single lever and is equipped with a micrometric screw adjustment.
The flush blade carriage also includes an angle guide that slides into the slot of the carriage and locks in this position.
1 presser blocks the parts resting on the table.
The aluminum profile support guide adjusts according to the cutting angle and includes an extension up to 2200 m/m.
The motor unit is perfectly held in a tilting cast iron frame and increases working precision.
The carriage extension is equipped with a roller to easily maneuver long parts.
Important recommendation from Probois for many woodworking machines :
Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
Always use an extension cord with a wire thickness of 2.5²
The extension cord must not exceed 10 meters and must not be coiled
The use of a reel, triplets or multi-socket is PROHIBITED
Have a standard electric meter with neutral and earth
Always work with a chip vacuum cleaner for your health and for the machine warranty
Always work with the protections in place
Do not work with dull or blunt tools, this can damage the internal mechanism.
Technical characteristics of the Bernardo TK315P sliding table saw :
Rotation speed 4000 RPM
Rotation speed of the scoring saw: 5800 RPM
Blade diameter: 315 mm
Blade bore: 30 mm
Scoring saw diameter: 90 mm
Scoring saw bore: 20 mm
90º cutting capacity: 100 mm
45º cutting capacity: 80 mm
Sled travel: 1600 mm
Capacity between guide and blade: 1240 mm
Table height: 870 mm
Table extension: 500x310 mm
Side table extension: 800x440 mm
Sliding roller table: 700x580 mm
Suction nozzle diameter: 100 mm
Dimensions: 1600 x 2870 x 1140 mm
Weight: 240 Kg
230V motor power :
S1 100% = 3.0 KW (4 HP)
S2 40% = 4.2 KW (5.7 HP)
The Bernardo TK315P sliding table saw is supplied with :
