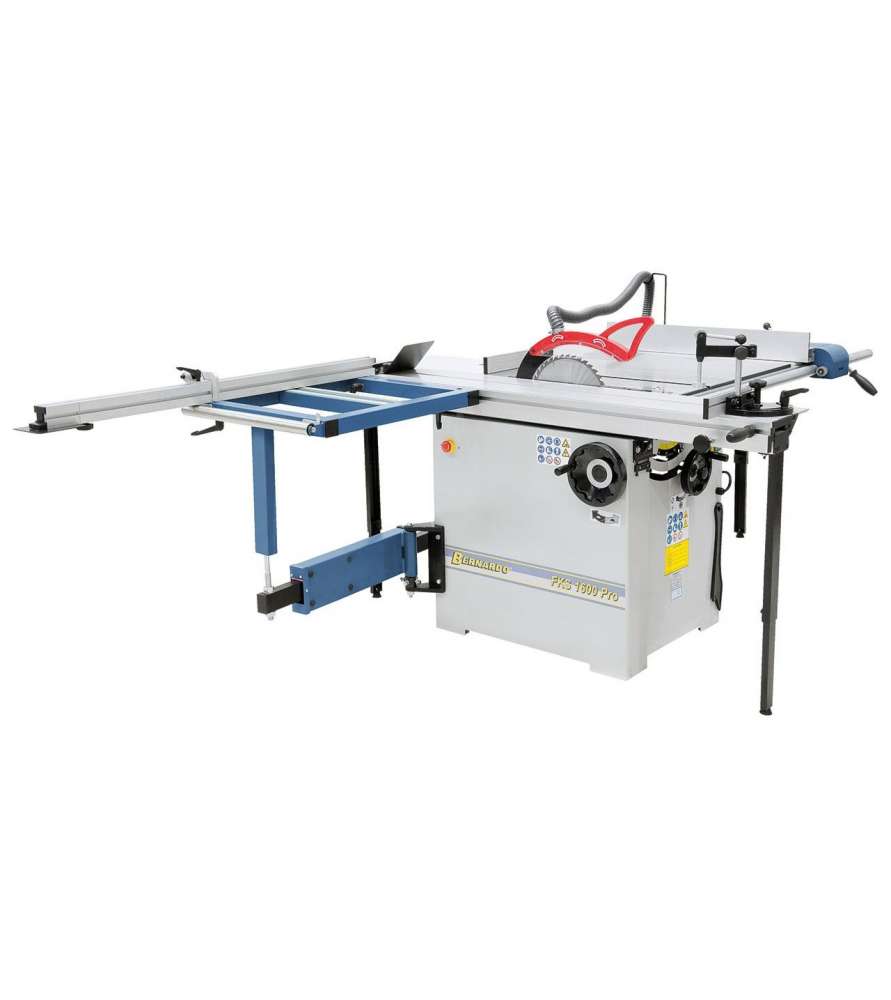

The Bernardo FKS1600PRO Sliding table saw has a large 1600 mm blade-level carriage with telescopic ruler.

It offers a cutting height of 100 mm. The scoring saw ensures chip-free work in delicate panels to be machined. The grey cast iron tables ensure perfect stability. Equipped with rear and side extensions and support foot for working with large wooden panels.

The advantages of the Bernardo FKS1600PRO Sliding table saw :

• Extendable telescopic guide (up to 2,260 mm) to be mounted on the sliding table at the front or rear, can be rotated from 90° to 45°
• A major advantage of this machine: 315 mm blade diameter can also be used with the scoring saw
• Large table and extension as standard for a cutting width of up to 1,200 mm
• Powerful motor for a constant cutting speed, even with a cutting height of 100 mm

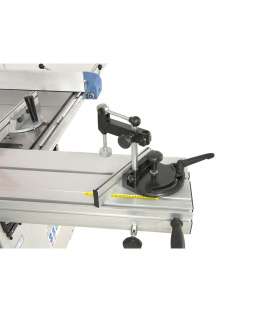

• Mitre guide and hold-down clamp can be moved along the entire length of the carriage

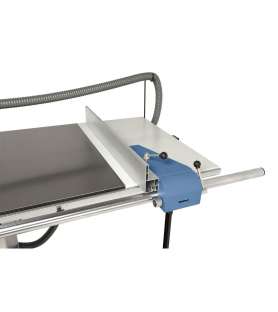

• Aluminium parallel guide with micrometric adjustment

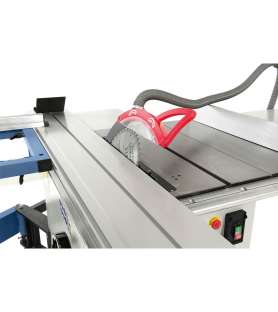

• Stable saw unit for precise and vibration-free work
• Robust roller sliding table and telescopic arm for maximum stability
• Anodised aluminium sliding carriage available in 2 lengths

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc... because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with dull or blunt tools, this can damage the internal mechanism.

Technical characteristics of the Bernardo FKS1600PRO Sliding table saw :

• Rotation speed 4000 RPM
• Scoring blade rotation speed: 5800 RPM
• Blade diameter: 315 mm
• Blade bore: 30 mm
• Scoring blade diameter: 90 mm
• Scoring blade bore: 20 mm
• Table dimensions: 800x380 mm
• Cutting carriage: 1600x270 mm
• 90º cutting capacity: 100 mm
• 45º cutting capacity: 80 mm
• Carriage stroke: 1600 mm
• Capacity between guide and blade: 1200 mm
• Table height: 870 mm
• Table extension: 500x310 mm
• Side table extension: 800x440 mm

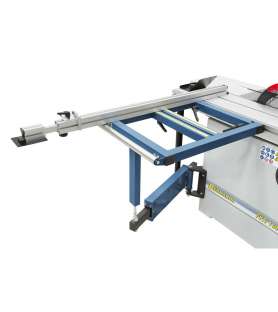

• Sliding roller table: 700x580 mm
• Suction nozzle diameter: 100 mm
• Dimensions: 1600 x 2870 x 1140 mm
• Weight: 255 Kg

400V motor power :

• S1 100% = 3.8 KW (5.1CV)
• S2 40% = 5.3 KW (7.2 CV)

The Bernardo FKS1600PRO Sliding table saw is supplied with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring saw 90 x 3.0 x 20 mm / Z12

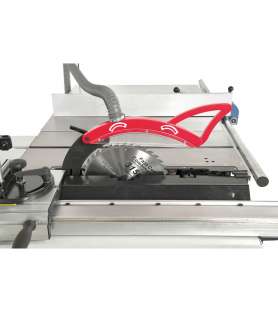

• Blade protection with suction nozzle
• Flexible with bracket

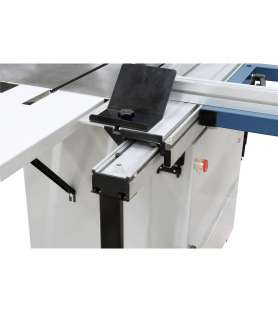

• Mitre guide with eccentric flange
• Mitre guide
• Pantograph support
• Table extension
• Side table extension
• Telescopic guide
• Finely adjustable longitudinal guide
• Sliding table roller
• Pusher
• Service tools

This Bernardo FKS1600PRO three-phase sliding table saw is exactly the same machine as the Holzprofi Maker SAF1600M
