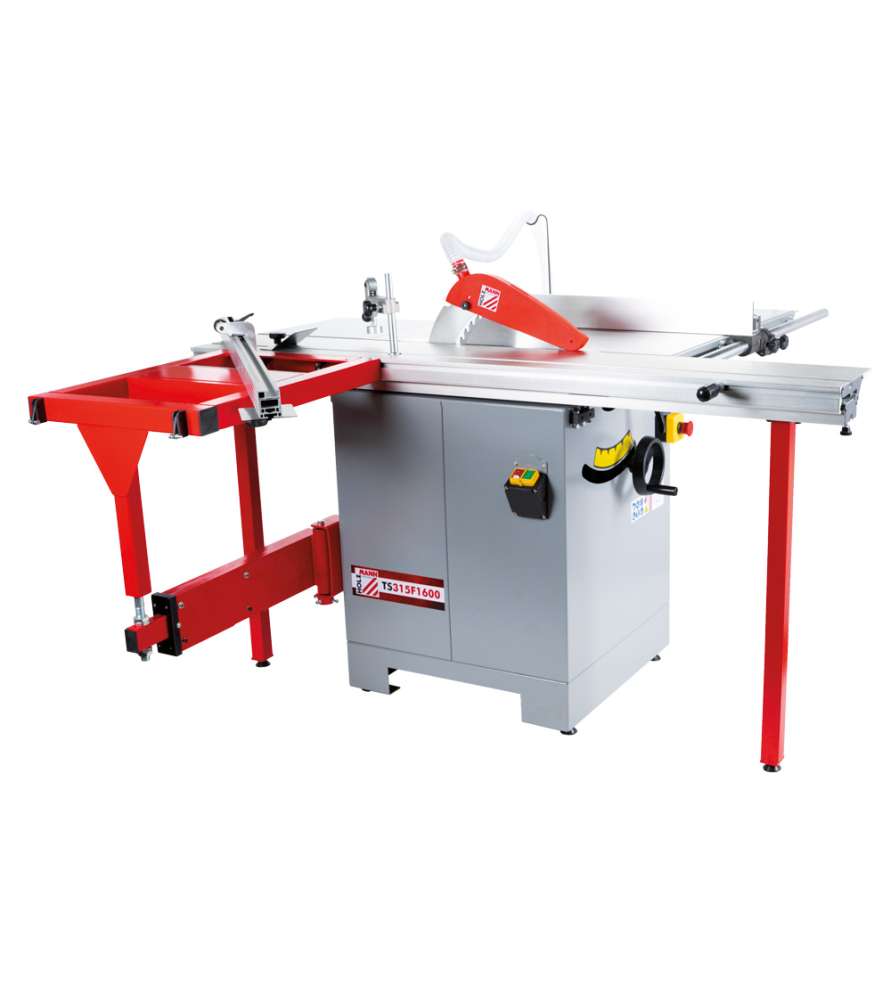

General description of the Sliding table saw Holzmann TS315F :

• saw blade adjustable in height and angle
• 1600mm aluminum sliding table running smoothly with stabilizer table incl. media roll
• saw blade with Ø315mm for a cutting height up to 85mm
• solid and precisely guided rip fence
• solid gray cast iron table for a long service life
• table extension and table extension

Technical characteristics of the Sliding table saw Holzmann TS315F :

• Motor power s1: 2200 W
• Voltage: 230V / 50Hz
• Motor power s6: 3100 W
• Table size: 800 x 365 mm
• Table height: 850 mm
• Table extension: 350 x 365 mm
• Extension of the table: 800 x 540 mm
• Sliding table: 238 x 1600 mm
• Suction port: 100 mm
• Total dimensions: 3000 x 3200 x 1200 mm
• Max cutting height 90 °: 85 mm
• Max cutting height 45 °: 60 mmC
• Max cutting : 1400 mm
• Cutting width at the rip fence max. : 900 mm
• Saw blade: 315 / bore 30 mm
• Saw blade speed: 4000 min-1
• Volume level and vibration
• Sound power level: 103 dB (A)
• Sound pressure level: 89.5 dB (A)
• Gross weight: 199.50 kg
• Net weight: 171 kg

The Sliding table saw Holzmann TS315F is delivered with:

• T.C.T. circular saw blade
• Sliding table and length stop
• Slitting guide
• Edge shoe
• Workpiece support
• Pusher
• Sliding wood

Important recommendation from Probois for many woodworking machines:

• Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with blunt or dull tools, this can damage the internal mechanism.
