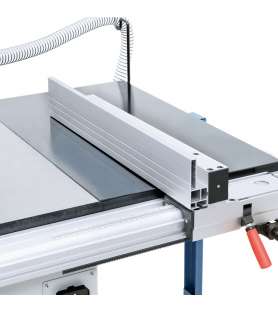

General description of the sliding table saw Bernardo STS1300ECO :

• Standard with 1300 x 240mm or 1600 x 240mm aluminum sliding carriage
• Powerful motor guaranteeing optimum cutting even in prolonged operation
• Standard with table extensions for long workpieces
• Possibility of connecting a suction to the 100 mm connector for optimal working conditions
• Inclination of the saw blade up to 45 ° by crank with graduation
• Solid gray cast iron table with T-slot for the miter fence
• Large gray cast iron table perfectly flat and rectified
• Machine frame in steel and gray cast iron, undeformable
• Aluminum parts (cutting carriage, guides, etc.) anodized
• Standard table extension for easy cutting of large parts

Technical characteristics of the sliding table saw Bernardo STS1300ECO :

• Table dimensions: 670 x 310 mm
• Cutting carriage: 1300 x 240 mm
• Sliding table stroke: 1300 mm
• Diam. max blade: 254 x 30 mm
• Maximum cutting height at 90 ° / 45 °: 80/63 mm
• Cutting width with parallel guide: 690 mm
• Table height: 870 mm
• Table extension: 325 x 310 mm
• Side table extension: 670 x 400 mm
• Sliding table: 600 x 455 mm
• Blade rotation speed: 4750 rpm
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.2 kW (3.0 hp)
• Power S6 40%: 3.0 kW (4.0 hp)
• Voltage: 230 V
• Machine dimensions (W x D x H): 1300 x 2160 x 1130 mm
• Weight (approx.): 135 kg

The sliding table saw Bernardo STS1300ECO  is delivered with:

• Carbide blade 254 x 3.2 x 30 mm / 24 teeth
• Blade protection with suction nozzle
• Flexible with gallows
• Miter guide with eccentric flange
• Tab guide
• Pantograph support
• Table extension
• Side table extension
• Sliding table
• Pusher
• Service tools
