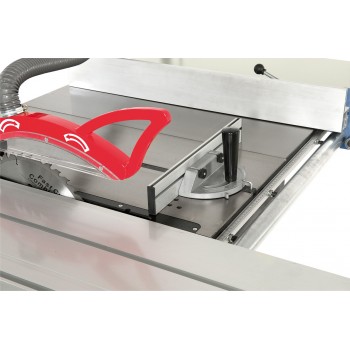

Sliding table saw Bernardo FKS2800PRO with a solid roller sliding table!

This machine also features an ideal telescopic arm for maximum stability!

Advantages of the Sliding table saw Bernardo FKS2800PRO :

• Great advantage of this machine: blade diameter 315 mm usable even with the scoring machine
• Sliding trolley in anodized aluminum available in 3 lengths
• Powerful motor for constant cutting speed, even with a cutting height of 100 mm
• Miter guide and blank holder movable along the entire length of the carriage
• Large table and extension as standard for a cutting width of up to 1200 mm
• Extendable telescopic guide (up to 2,260 mm) to be mounted on the sliding table at the front or rear, adjustable from 90° to 45°
• Aluminum parallel guide with micrometric adjustment
• Stable sawing unit for precise, vibration-free work

Technical characteristics of the Sliding table saw Bernardo FKS2800PRO :

• Table dimensions: 800 x 380 mm
• Cutting carriage: 2800 x 270 mm
• Sliding table travel: 2800 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90° / 45°: 100 / 80 mm
• Cutting width with parallel guide: 1200 mm
• Table height: 870 mm
• Table extension: 500 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 880 x 580 mm
• Blade rotation speed: 4000 rpm
• Scoring rotation speed: 5800 rpm
• Inciser: 90 x 20 mm
• Suction nozzle, ø: 100 mm
• S1 100% continuous power: 3.8 kW (5.1 hp)
• S6 40% power: 5.3 kW (7.2 hp)
• Voltage: 400 V
• Machine dimensions (L x D x H): 2800 x 2900 x 1180 mm
• Weight (approx.): 324 kg

The Sliding table saw Bernardo FKS2800PRO comes with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scorer 90 x 3.0 x 20 mm / 12 teeth
• Blade protection with suction nozzle
• Flexible with stem
• Miter guide with eccentric flange
• Miter Guide
• Pantograph support
• Table extension
• Side table extension
• Parallel guide
• Telescopic guide
• Longitudinal guide with fine adjustment
• Sliding table
• Pusher
• Sliding handle
• Service tools

IMPORTANT FOR THE DELIVERY AND START-UP OF XL MACHINES!

XL machines are shipped only by 38-ton truck. The delivery location must be designed so that this type of truck can approach and maneuver easily. If access is only possible by 19-ton truck (minimum), you must inform us in advance so that a solution can be found. If this results in additional delivery costs, they must be paid before shipping. Start-up: Prices do not include assembly or electrical installation, which must be done by a professional in order to avoid any damage to the machine's motors and electrical circuits that the warranty cannot cover.
