Robust and precise Sliding table saw Bernardo FKS3200PRO, ideal for large jobs!

This machine has a major advantage: a blade with a diameter of 315 mm that can even be used with the scorer!

Advantages of the Sliding table saw Bernardo FKS3200PRO :

• Solid roller sliding table and telescopic arm for maximum stability
• Sliding trolley in anodized aluminum available in 3 lengths
• Powerful motor for constant cutting speed, even with a cutting height of 100 mm
• Miter guide and blank holder movable along the entire length of the carriage
• Large table and extension as standard for a cutting width of up to 1200 mm
• Extendable telescopic guide (up to 2,260 mm) to be mounted on the sliding table at the front or rear, adjustable from 90° to 45°

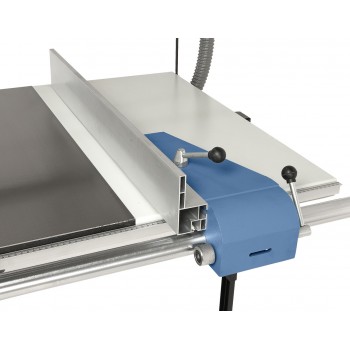

• Aluminum parallel guide with micrometric adjustment
• Stable sawing unit for precise, vibration-free work

Technical characteristics of the Sliding table saw Bernardo FKS3200PRO :

• Table dimensions: 800 x 380 mm
• Cutting carriage: 3200 x 270 mm
• Sliding table travel: 3200 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90° / 45°: 100 / 80 mm
• Cutting width with parallel guide: 1200 mm
• Table height: 870 mm
• Table extension: 500 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 880 x 580 mm
• Blade rotation speed: 4000 rpm
• Scoring rotation speed: 5800 rpm
• Inciser: 90 x 20 mm
• Suction nozzle, ø: 100 mm
• S1 100% continuous power: 3.8 kW (5.1 hp)
• S6 40% power: 5.3 kW (7.2 hp)
• Voltage: 400 V
• Machine dimensions (L x D x H): 3200 x 2900 x 1180 mm
• Weight (approx.): 330 kg

The Sliding table saw Bernardo FKS3200PRO comes with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scorer 90 x 3.0 x 20 mm / 12 teeth
• Blade protection with suction nozzle
• Flexible with stem
• Miter guide with eccentric flange
• Miter Guide
• Pantograph support
• Table extension
• Side table extension
• Parallel guide
• Telescopic guide
• Longitudinal guide with fine adjustment
• Sliding table
• Pusher
• Sliding handle
• Service tools

IMPORTANT FOR DELIVERY AND START-UP OF XL MACHINES!

XL machines are only shipped by 38 ton truck. The delivery location must be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19 ton truck (at least), you must inform us in advance so that a solution can be found. If this results in additional delivery charges, they must be paid before shipping. Getting started: The prices do not include assembly or electrical installation which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
