Sliding table saw Holzmann TS315VF-2600 - 400V
  • Sliding table saw Holzmann TS315VF-2600 - 400V
  • Sliding table saw Holzmann TS315VF-2600 - 400V
  • Sliding table saw Holzmann TS315VF-2600 - 400V

Sliding table saw Holzmann TS315VF-2600 - 400V

3,935.00 € Tax included

Including €2.50 for ecotax

Reference: HTS315VF-2600-400V

The Sliding table saw Holzmann TS315VF with 2600 mm carriage is a powerful machine for long-distance sawing.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Advantages of the Holzmann TS315VF Sliding table saw :

  • Professional and standard equipment that has made a machine unique and powerful!
  • The scorer placed in front of the blade facilitates the cutting of melamine panels and avoids the bursting of surface coatings.
  • Side table extensions increase cutting capacity and maintain large panels.
  • The corner guide has stops at 90 ° and 45 °.

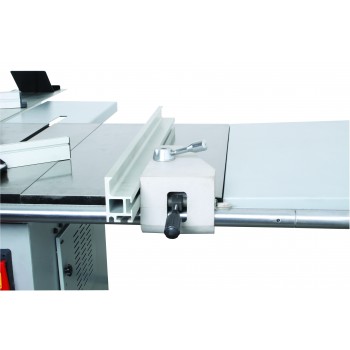

  • The parallel guide is easily locked by a single lever and is equipped with a micrometer screw adjustment.
  • The blade carriage also has a corner guide that slides into the slot of the carriage and locks in this position.
  • 1 presser blocks the pieces resting on the table.
  • The aluminum profile guide adjusts according to the cutting angle and includes an extension up to 2200 m / m.
  • The engine block is perfectly maintained in a tilting cast iron frame and increases working precision.
  • The trolley extension is equipped with a roller to easily maneuver long pieces.

The Sliding table saw comes with:

Telescopic Ruler + Stop + Roller, Angle Guide, Parallel Guide, Saw Blade 315 x 3.0 x 30mm / 40T, Scoring Machine, Protective Hood with Dust Extraction Outlet , connection pipe with Y-piece, table extension, sliding aluminum carriage, push-button and tools.

Important recommendation from Probois for many woodworking machines :

  • Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
  • Always use an extension cord with a 2.5² wire thickness
  • The extension cord must not exceed 10 meters and must not be coiled
  • The use of a reel, triplets or multi-socket is PROHIBITED
  • Have a standard electric meter with neutral and earth
  • Always work with a chip vacuum cleaner for your health and for the machine warranty
  • Always work with the protections in place
  • Do not work with blunt or dull tools, this can damage the internal mechanism.

Specifications of the Holzmann TS315VF Sliding table saw :

  • 100% S1 engine: 3.8 kW (5.1 HP)
  • S6 40% engine: 5.3 kW (7.2 HP)
  • Main blade: Ø 315 - al.30
  • Scoring blade: Ø 100 - al.20
  • Main blade speed: 4500 rpm.
  • Scoring blade speed: 8500 rpm
  • Haut.max. cutting at 90 °: 100 mm
  • Haut.max. cutting at 45 °: 80 mm
  • Cast iron table dimension: 800 x 400 mm
  • Table extension length: 800 x 880 mm
  • Dimension rear extension: 500 X 310 mm
  • Trolley dimensions: 2600 x 270 mm
  • Trolley frame size: 830 x 520 mm
  • Cutting width on parallel guide: 1200 mm
  • Weight: 331 kg
  • Machine dimensions: 2600 x 2800 x 1100 mm
  • Voltage: 400V
HTS315VF-2600-400V
