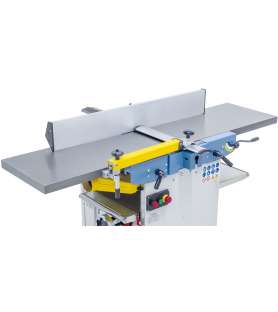

General description of the Bernardo FS410PS thicknesser and planer with helical shaft - 400V :

• Reduction of noise pollution (approximately 50%) thanks to the helical shaft and up to 20 times the life of the cutting edge (results of HM inserts usable in four directions)
• Advantage of HM inserts: in the event of damage, the individual knives can be replaced or rotated
• The tables fold out towards the rear of the machine, allowing space-saving installation
• The sharp carbide edges guarantee tear-free planing results and optimal surfaces for every type of wood.
• Integrated foldable chip ejection hood, connection diameter 100 mm
• Digital display on the steering wheel with 1/10 mm graduation for precise adjustment of the thickness table
• Dressing stop in hard anodized aluminum, swivels from 90° to 45°
• Powerful drive motor for optimal planing results
• Quick and easy adjustment of the desired chip removal
• Simultaneous opening of the dressing tables to switch from dressing to thickness planing in a few seconds
• Numerous protection devices: on-off switch with undervoltage release, cutting shaft protection according to CE, limit switch to prevent unintentional switching on

The Bernardo FS410PS thicknesser and planer with helical shaft - 400V is delivered with :

• Helical shaft with 72 pieces of HM inserts
• Replacement HM inserts (5 pieces)
• Digital display
• Table extension
• Push stick

Technical characteristics of the Bernardo FS410PS jointer and planer with helical shaft - 400V :

Thicknesser

• Dressing width: 410 mm
• Table length: 1685 mm
• Table height: 850 mm
• Planing shaft speed: 4300 rpm
• HM inserts: 72 pieces.
• Planer shaft diameter: 70 mm
• Training fence: 1115 x 150 mm
• Adjustable dressing stop: 90° to 45°
• Maximum chip removal: 3.5mm

Planer

• Table length: 995* mm
• Planing width: 410 mm
• Thickness capacity, min./max. : 5 – 240 mm
• Maximum chip removal: 4.5mm
• Feed speed: 5.4 m/min
• Ø suction connection: 100 mm
• S1 100% motor output power: 3.0 kW (4.0 HP)
• S6 40% engine input power: 4.2 kW (5.7 HP)
• Voltage: 400 V
• Machine dimensions (L x W x H): 1685 x 990 x 1010 mm
• Weight approximately: 261 kg
• * with table extension
