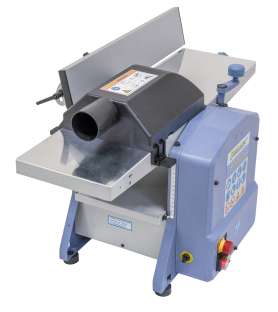

Technical data of the Bernardo PT200S planer thicknesser with helical shaft :

Thicknesser

• Planing width: 205 mm
• Table length: 740 mm
• Planing shaft speed: 8000 rpm
• HM indexable inserts: 18 pcs.
• Planer shaft diameter: 50 mm
• Planing stop: 540 x 100 mm
• Planer stop pivoting: 90° to 45°
• Max. chip removal: 2 mm

Planer

• Table length: 250 mm
• Planing width: 200 mm
• Min./max. working height: 5 - 120 mm
• Max. chip removal : 2 mm
• Feed speed: 6.5 m/min
• Extraction connection Ø: 60 mm
• S1 motor output power 100%: 1.5 kW (2.0 HP)
• S6 motor input power 40%: 2.1 kW (2.8 HP)
• Voltage: 230 V
• Machine dimensions (L x W x H): 790 x 460 x 480 mm
• Weight approx.: 26 kg

Important recommendation from Probois for many woodworking machines :

Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc... because the various transports cause vibrations.

Always use an extension cord with a wire thickness of 2.5²

The extension cord must not exceed 10 meters and must not be coiled

The use of a reel, triplets or multi-socket is PROHIBITED

Provide an electric meter with special machine start-up fuses of at least 16A

Have a standard electric meter with neutral and earth

Always work with a chip vacuum cleaner for your health and for the machine warranty

Always grease the cast iron tables with wood slide

Always work with the guards in place

Do not work with dull or blunt irons, this can damage the mechanism, the advance of the planer, break the belt
