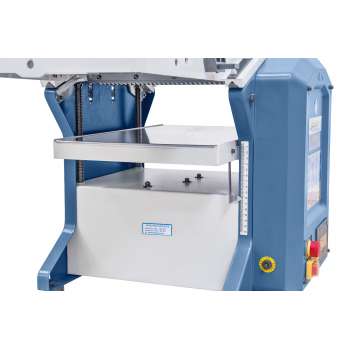

Planer and thicknesser Bernardo PT305S ideal for DIY enthusiasts!

It is equipped with a powerful motor providing optimal planing.

Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are correctly installed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always grease the cast iron tables with wood slide
• Always work with the guards in place
• Do not work with blunt or dull irons, this can damage the mechanism, the advance of the planer, break the belt

General description of the planer thicknesser Bernardo PT305S :

• Reduced noise emissions due to lips on both sides of the deck
• Quick and easy adjustment of the pass removal
• Stable guide tiltable from 90 ° to 45 °
• Perfectly flat aluminum planing tables for a precise result
• Precision helical shaft
• CE compliant shaft protection for maximum safety
• Combined suction hood can be used for either planing or planing
• Quadruple guided planing table for precise planing of boards, strips, etc.

Technical characteristics of the planer thicknesser Bernardo PT305S :

Thicknesser

• Cutting width: 305 mm
• Table length: 1075 mm
• Shaft speed: 9500 rpm
• Helical Shaft
• Shaft diameter: 51 mm
• Guide: 640 x 125 mm
• Tilt guide: 90 ° to 45 °
• Maximum pass removal: 2 mm

Planer

• Table length: 500 mm
• Planer width: 300 mm
• Planing height, min / max: 5 - 150 mm
• Maximum pass removal: 1 mm
• Feed speed: 7 m / min
• Ø suction nozzle: 100 mm
• S1 continuous power 100%: 1.8 kW (2.4 hp)
• 40% S6 power: 2.5 kW (3.4 hp)
• Voltage: 230 V
• Dimensions (L x W x H): 1125 x 560 x 575 mm
• Weight (approx.): 46 kg
