The Bernardo AD410 planer and thicknesser benefits from longer tables!

The length of the planing table on this Bernardo machine is 1685 mm, which is longer than the models of the same width. This machine is dedicated to DIY enthusiasts and amateurs concerned about the quality of their machines. It offers 210mm of planing height and has a 3000W motor at work, 4200W at start-up.

The planing width of this machine and its power require a sufficiently powerful vacuum cleaner in extraction. It is therefore necessary to avoid any vacuum cleaner of less than 3500 m3 / h!

Important recommendation from Probois for many woodworking machines:

• Before starting, always check the inside of your machine, see if the belts are correctly fitted, tighten the bolts, lubricate the tables, etc ... because the various transports cause vibrations.
• Always use an extension cord of 2.5² wire size
• The extension cord must not exceed 10 meters and must not be rolled up
• Provide an electric meter with special machine starting fuses of at least 20A
• Have an electric meter up to standards with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the warranty of the machine
• Always grease cast iron tables with wood glide
• Always work with the guards in place
• Do not work with blunt or dull irons, this can damage the mechanism, the planer advance, break the belt

General description of the planer and thicknesser Bernardo AD410:

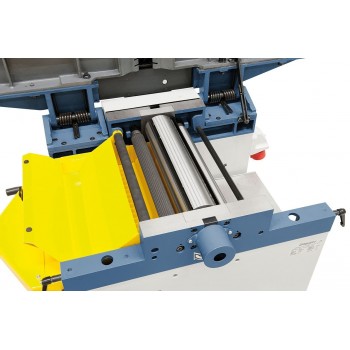

• Planer tables tilt towards the rear of the machine to minimize space requirements.
• Integrated dust cover, tiltable, extraction outlet 100 mm.
• Simultaneous tilting of the planing tables.
• The feed to the planing table can be switched off during planing.
• Hard anodized aluminum planing guide, tiltable from 90 ° to 45 °.

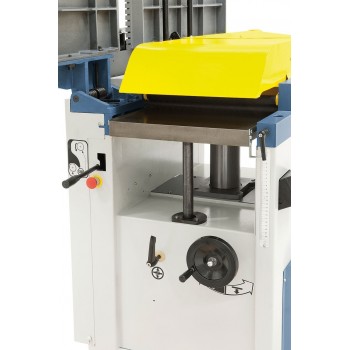

• Planing table on central column and support for precise planing.
• The torsion-free cast iron planing tables guarantee better results.
• On / off switch with undervoltage release
• CE compliant blade holder cover
• Limit switch to prevent accidental starting of the machine.

The Bernardo AD410 planer thicknesser is equipped as standard with:

• HSS irons
• Tilting planer guide
• Pusher

Technical characteristics of the Bernardo AD410 thicknesser planer:

• Dimensions of planing tables mm: 1685 x 410
• Planing width mm: 410
• shaft ø mm: 95
• Number of irons: 4
• Depth of cut mm: from 0 to 3
• Planer table dimensions mm: 750 x 410
• Planing table width mm: 410
• Planing table length mm: 750
• Wood height in planing mm: from 4 to 220
• Wood feed speed m / min: 6
• Rotation speed rpm: 4300
• Disengageable wood advance: yes
• 400V motor
• Absorbed power S1 100% in W: 3000
• Power S6 at 40% in W: 4200 (5.7 CV)
• Weight kg: 340
• Dimensions mm: 1685 x 1045 x 1100 mm
• Guide dimensions mm: 1110 x 150
• Tilt 90 ° - 45 °

Good to know: Three-phase machines (3 phases, neutral and earth) are generally delivered without plug. When assembling, be careful not to connect the wires backwards to avoid damaging the mechanical system! See the correct outlet: three-phase outlet.

VERY IMPORTANT FOR DELIVERY!

The delivery of this very heavy planer jointer (approx 400 kg) requires a large truck with rag! The place of delivery must imperatively be planned so that the truck can approach easily. In the event of a delivery location that is difficult to access, let us know so that we can order a smaller truck, but delivery charges will then apply for this special request. Delivery charges must be paid before shipment.

The machine arrives in a wooden case. Our prices do not include assembly or installation. Its electrical installation should be checked by a professional to ensure that it can withstand the power of this machine so as not to damage it by an unsuitable meter.

For a better after-sales service, efficient and fast, we recommend the top range machine Scheppach Plana 6.1c!
