Planer and thicknesser Holzmann HOB415 offering great working qualities!

General description of the planer thicknesser Holzmann HOB415:

• Powerful and stable machine which provides high precision work

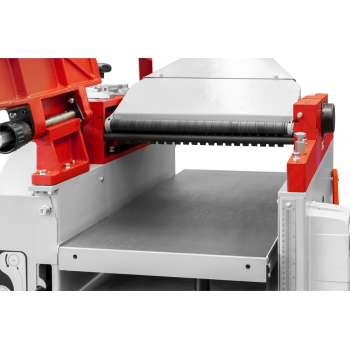

• Planing table mounted on central shaft completed with a guide bar
• Heavy welded sheet metal frame
• Rectified cast iron table
• Guide tiltable at 45 °

Technical characteristics of the planer thicknesser Holzmann HOB415:

• Table length and width in mm: 1800 x 430
• Chip hold in mm: 4
• Guide dimensions in mm: 1365 x 155
• Guide tilt: 90 ° -45 °
• Working height in mm: 890
• Motor power: 400 w - 5 cv
• Voltage: 400V tri
• Feed speed: 7m / min
• Suction nozzle in mm: 120
• Dimensions in mm: 1860 x 735 x 1085
• Planing table dimensions: 750 x 408
• Chipping planer: 5
• Planing height in mm: 230
• Shaft Ø: 95
• Shaft speed: 4200
• Number of irons: 3
• Net weight: 360 kg
• Gross weight: 433 kg
• Packing: 740 x 1,865 x 1,085

Included in delivery:

• resettable planer / jointer knives (410 x 3 x30 mm),
• setting gauge of the planer knife
• guide
